Description

Overview

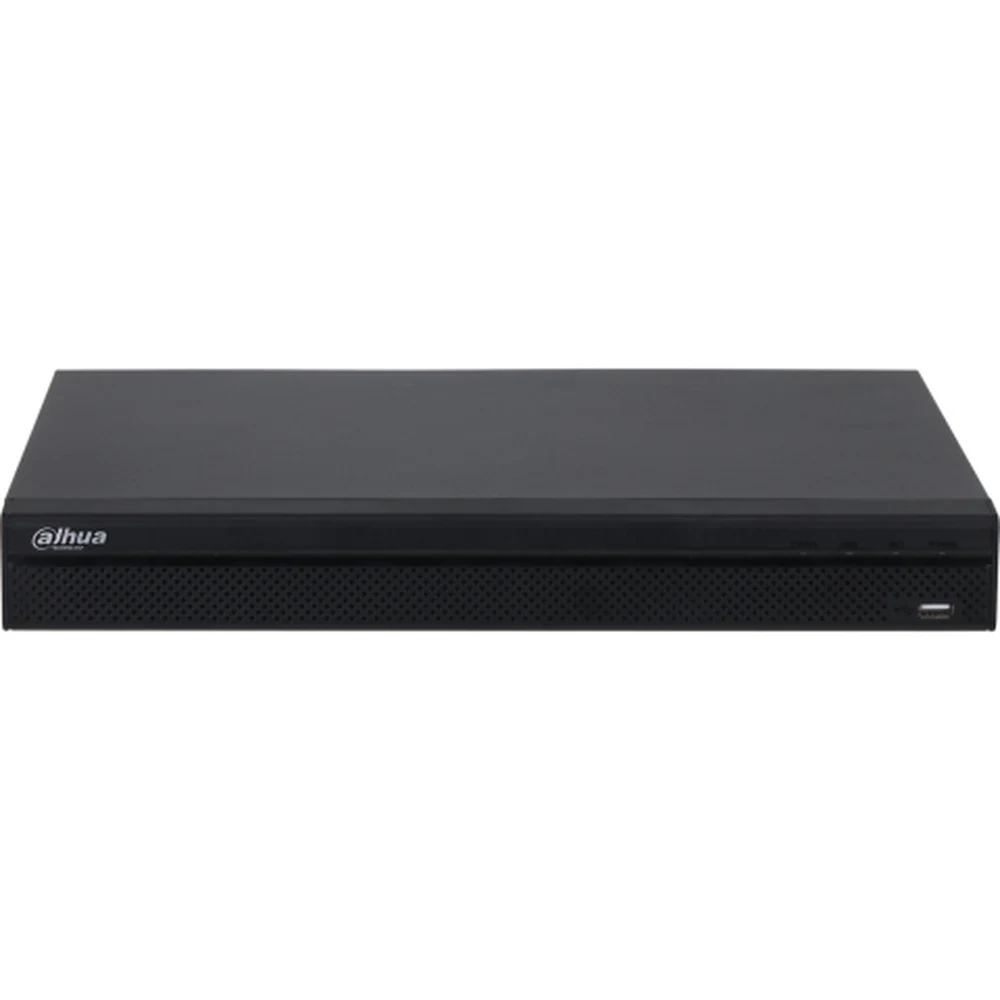

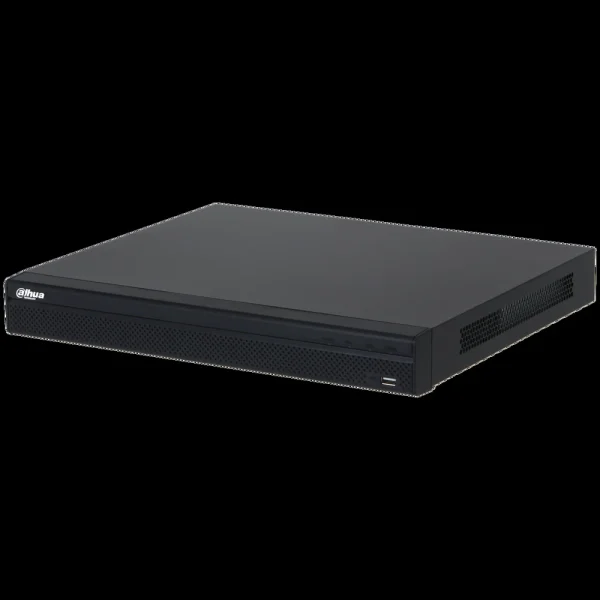

The Dahua DHI-NVR4232-4KS3 is a 32-channel 4K network video recorder from Dahua’s Lite series — the recording backbone for serious IP surveillance systems. It connects up to 32 IP cameras, records in up to 12MP resolution with Smart H.265+ compression, and outputs crisp 4K over HDMI to your monitoring display.

Thirty-two channels puts this NVR in the commercial league: offices, warehouses, schools, retail floors, and multi-building sites. The 4KS3 platform adds the modern essentials — AI by recorder (SMD), AI by camera support (face detection, perimeter protection, people counting), and ONVIF Profile T/S/G conformance so third-party cameras join the system too.

Storage is handled by 2× SATA ports (up to 20TB per drive, 40TB total — note some reseller sheets claim 4 bays, but Dahua’s specification for this 1U Lite model is 2 ports). For anyone building a CCTV NVR system in Pakistan, this Dahua 32CH NVR is the proven, widely-deployed choice.

Why does the Lite series matter? Dahua’s NVR4000-4KS3 line is the volume seller for a reason: it delivers the channel count, 4K output, and AI basics that 90% of commercial projects need, without the price premium of the Pro/WizMind lines. For offices, retail, and schools — where the requirement is reliable recording, easy playback, and remote viewing — the 4KS3 hits the value sweet spot that installers across Pakistan standardize on.

Key Benefits

• 32 IP channels: room to grow from a handful of cameras to full-site coverage.
• 4K HDMI output: 3840×2160 display output for the control room monitor.
• Smart H.265+: cuts storage and bandwidth needs dramatically vs H.264.
• AI features: SMD Plus by recorder (4 channels); face/perimeter/people-counting via AI cameras.
• ONVIF conformance: mix Dahua and third-party cameras (Profile T/S/G).
• Remote access: iOS/Android mobile apps and web client for anywhere viewing.

Detailed Features

32 Channels, 4K Ready

Up to 32 IP camera inputs with 200 Mbps incoming bandwidth, recording resolutions up to 12MP, and decoding that keeps multi-view smooth. One HDMI (4K) plus one VGA output drive local displays; 16-channel synchronous playback lets operators review incidents across cameras simultaneously.

Smart H.265+ Storage Efficiency

Smart H.265+ with scene-adaptive encoding slashes bitrates on static scenes — the typical surveillance view — stretching each terabyte much further than H.264. With 2× SATA ports (up to 20TB each, 40TB total), plan retention in weeks, not days.

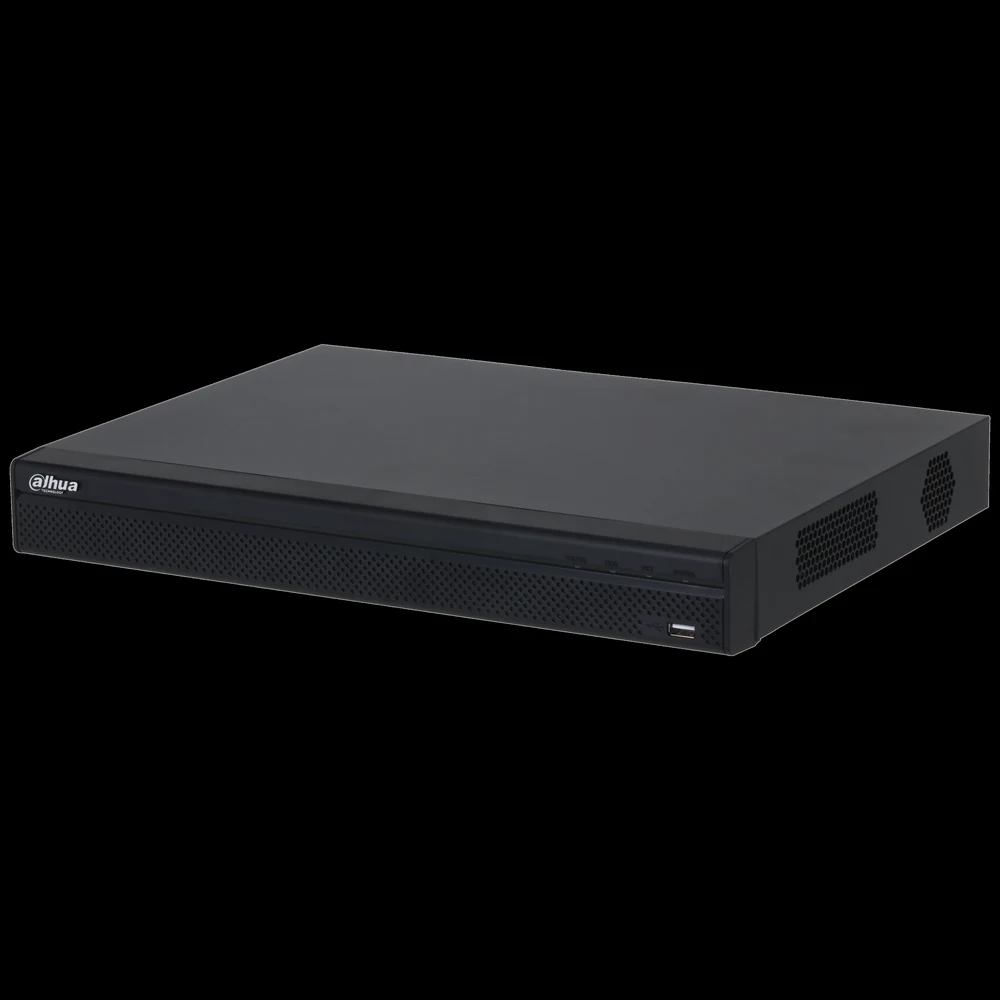

AI That Reduces False Alarms

SMD Plus (Smart Motion Detection) by recorder filters human/vehicle targets on 4 channels; connect AI cameras and unlock face detection, perimeter protection, people counting, and heat maps. Alarm linkage — record, snapshot, email, buzzer — turns detection into action.

Retention Planning: How Long Will It Record?

The question every buyer asks. With Smart H.265+, a 4MP camera at 15fps typically needs 20–40 GB/day. Thirty-two such cameras ≈ 1–1.3 TB/day, so 2× 20TB drives (≈36TB usable) give roughly four weeks of continuous recording — longer with motion-based recording or lower frame rates. Size your drives to your retention policy, and remember: surveillance-rated HDDs (not desktop drives) are built for 24/7 write workloads.

Technical Specifications

Specification	Details
Model	Dahua DHI-NVR4232-4KS3 (Lite series, 1U)
IP Camera Inputs	32 channels
Recording Resolution	Up to 12MP; 8MP/6MP/5MP/4MP/3MP/1080p supported
Video Compression	Smart H.265+, H.265, Smart H.264+, H.264
Network Bandwidth	160 Mbps incoming / 128 Mbps recording / 60 Mbps outgoing (AI disabled)
Video Output	1× HDMI (up to 3840×2160), 1× VGA
Display Split	1/4/8/9/16/25/36 (AI disabled)
Playback	Up to 16-channel synchronous playback
HDD Bays	2× SATA ports, up to 20TB per HDD (40TB total)
AI	SMD Plus by recorder (4 channels); face/perimeter/people-counting/heat map by camera
Interoperability	ONVIF 24.12 (Profile T/S/G); Panasonic, Sony, Axis, Canon & more
Network	1× RJ-45 10/100/1000 Mbps; HTTP/HTTPS/TCP/IP/RTSP/DDNS/P2P
Remote Access	Web, iOS & Android mobile apps, CMS
Alarm I/O	4-channel alarm in, 2-channel alarm out; 2× USB (1 front USB 2.0, 1 rear USB 2.0)
Operating System	Embedded Linux

Ideal Users

• Offices & warehouses: 32 channels cover entrances, floors, and perimeters.
• Retail chains: multi-store recording with central remote viewing.
• Schools & campuses: AI people-counting and perimeter alerts add value beyond recording.
• Surveillance installers: the standard-spec 32CH NVR clients request — pair with a PoE switch for the camera network.
• Upgraders: moving from 8/16CH? This is the headroom buy.

What’s in the Box

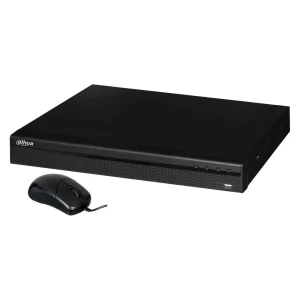

• Dahua DHI-NVR4232-4KS3 32CH 4K NVR
• Power adapter
• USB mouse
• SATA cables & mounting screws
• Quick start guide

Hard drives not included — add surveillance-rated HDDs (up to 20TB each, 40TB total) per your retention needs.

FAQs

Q: How many hard drives does it take — 2 or 4?
A: This 1U Lite model has 2× SATA ports per Dahua’s official specification (up to 20TB each, 40TB total). Some reseller sheets list 4 — that’s incorrect for the 4KS3.

Q: Can I use non-Dahua cameras?
A: Yes — ONVIF Profile T/S/G conformance plus direct support for major brands (Axis, Sony, Panasonic, Canon, Hanwha).

Q: How much storage do I need for 32 cameras?
A: Depends on resolution, frame rate, and retention. With Smart H.265+, 2× 10TB drives typically hold 2–4 weeks of 32× 4MP recording — ask us on Facebook for a retention estimate.

Q: Does it work over the internet / mobile?
A: Yes — P2P, DDNS, and iOS/Android apps for remote live view and playback.

Q: Is there a PoE version?
A: This 4KS3 variant has no built-in PoE — use a separate PoE switch (like our D-Link 24-port) for camera power.

Q: What’s the warranty?
A: Confirm exact warranty terms with us on Instagram before ordering.

Q: 16-channel vs 32-channel — which do I need?
A: Count your cameras, then add headroom. A site with 12 cameras today often grows to 16–20 within two years. The 32CH model costs modestly more than 16CH but avoids a second NVR later — and single-system management (one login, one playback timeline) is far easier for operators than juggling two recorders.
