Description

Overview

The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB (GV-N5070WF3OC-12GD) hits the sweet spot of NVIDIA’s Blackwell generation: genuine 1440p ultra and entry-4K gaming power, 12GB of GDDR7 memory, and DLSS 4 — in a compact SFF-Ready card that sips power compared to its bigger siblings. With 6144 CUDA cores and a 2542 MHz factory overclock, it outmuscles last-gen flagships while running cooler and quieter.

For most gamers in Pakistan, the RTX 5070 is the rational flagship: you get Blackwell’s full feature set — DLSS 4 Multi Frame Generation, 5th-gen Tensor cores, 4th-gen RT cores, Reflex, and 9th-gen NVENC — without the 850W PSU and premium price of the 5080 class. The WINDFORCE 3X cooler (Hawk fans, vapor chamber, server-grade thermal gel) and a modest 750W PSU requirement make it an easy, sensible upgrade. Browse the RTX 5070 range in Pakistan and you’ll see why this card defines the price-to-performance curve.

At 282 × 110 × 50 mm and NVIDIA SFF-Ready, it fits compact builds that bigger cards can’t. Whether you’re building new or upgrading from an RTX 3060/4060-class card, the Gigabyte RTX 5070 Windforce delivers a generational leap you will feel in every game.

Key Benefits

• Blackwell efficiency: 6144 CUDA cores at just a 750W PSU requirement — big performance without a power-hungry build.
• 12GB GDDR7: 192-bit bus at 28 Gbps handles 1440p ultra textures and entry-level 4K with headroom.
• DLSS 4 Multi Frame Generation: AI-generated frames multiply performance in supported titles.
• 2542 MHz factory OC: overclocked out of the box with WINDFORCE 3X triple-fan cooling.
• SFF-Ready compact: 282 mm length fits smaller cases that reject longer cards.
• Creator features: NVIDIA Studio drivers, 9th-gen NVENC, and Broadcast AI for streaming and editing.

Detailed Features

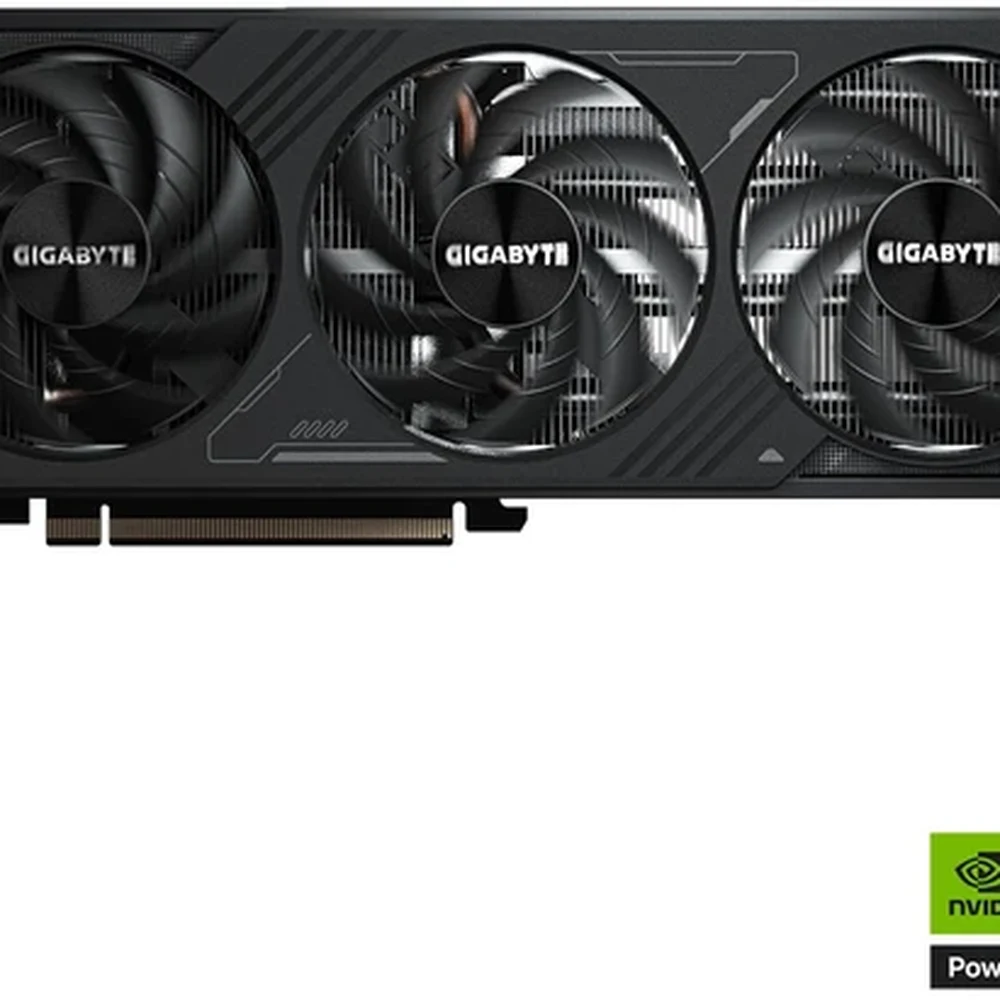

1440p Ultra, 4K Capable

The RTX 5070 is built for 1440p high-refresh gaming — the resolution most Pakistani gamers actually play at. DLSS 4 pushes well past 144fps in competitive titles and makes 4K gaming viable in AAA games with frame generation enabled.

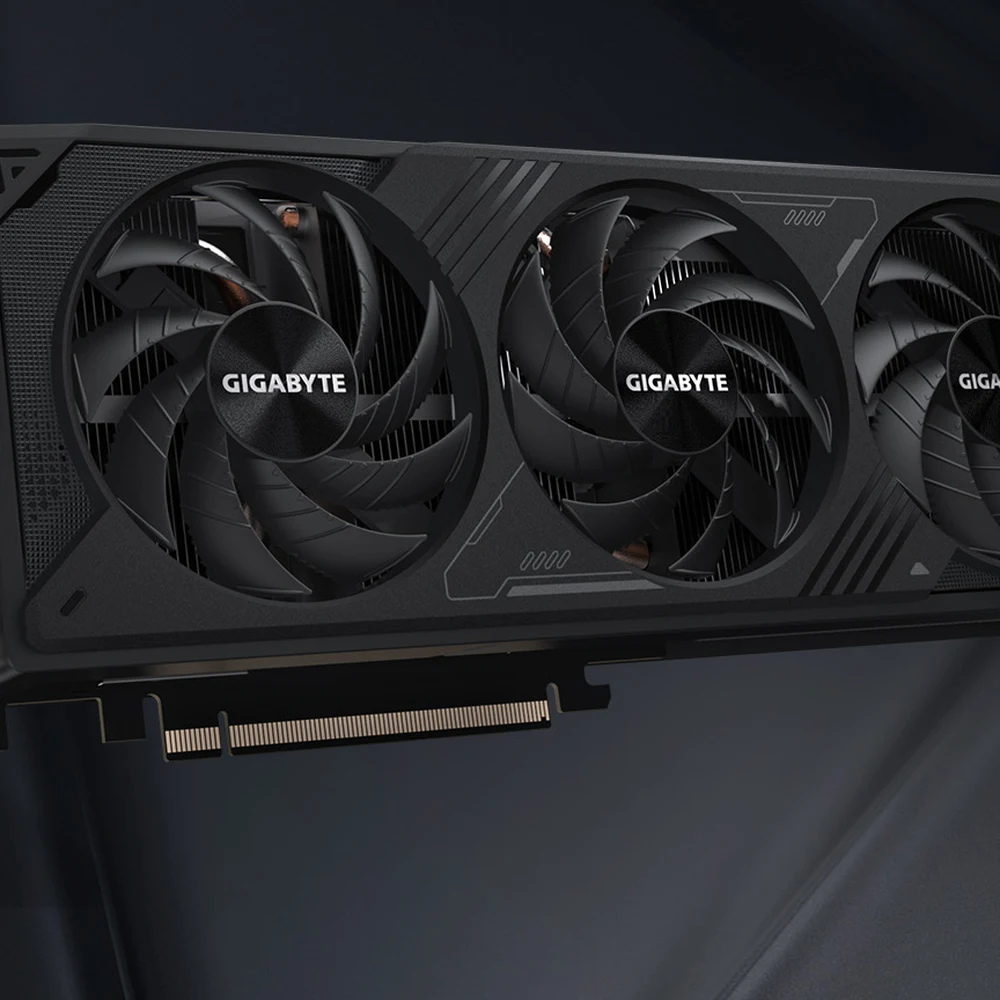

WINDFORCE 3X Cooling

Hawk fans with alternate spinning, a large vapor chamber, composite copper heat pipes, and server-grade thermal conductive gel keep the GPU and memory cool. The reinforced metal backplate adds rigidity, and 3D Active Fan keeps things silent at idle.

Easy Upgrade Path

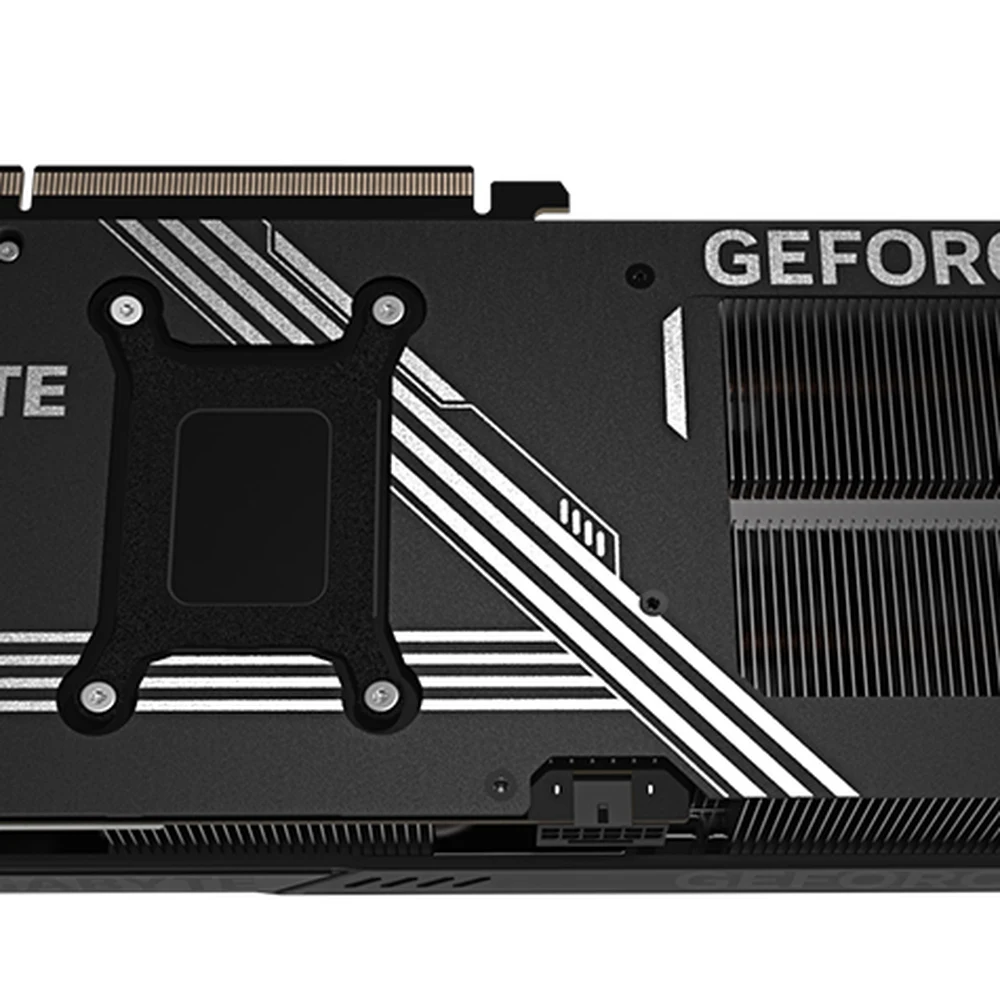

A single 16-pin connector (adapter to 2× PCIe 8-pin included) and a 750W PSU recommendation mean most mid-range gaming PCs can take this card with a simple swap. PCI Express 5.0, DisplayPort 2.1b ×3, and HDMI 2.1b cover all modern displays.

Where It Sits in the Lineup

The RTX 5070 is deliberately positioned as the volume driver of the Blackwell generation. Against the RTX 5080 above it, you trade roughly a tier of raster performance and 4GB of VRAM for a much friendlier price and power envelope — while keeping every Blackwell feature that matters: DLSS 4, Reflex 2, 5th-gen Tensor cores, and 9th-gen NVENC. Against last generation’s RTX 4070 Super, you gain DLSS 4 frame generation (a 50-series exclusive), GDDR7 bandwidth, and better efficiency. For anyone gaming at 1440p — still the most popular resolution among Pakistani PC gamers — this is the card reviewers keep recommending, and the WINDFORCE OC SFF edition adds Gigabyte’s proven cooling and a compact footprint that broader triple-fan cards can’t match.

Technical Specifications

Specification	Details
Model	Gigabyte GV-N5070WF3OC-12GD – GeForce RTX 5070 WINDFORCE OC SFF 12G
GPU Architecture	NVIDIA Blackwell – GeForce RTX 5070
CUDA Cores	6144
Core Clock	2542 MHz (Reference: 2512 MHz)
Memory	12GB GDDR7, 192-bit, 28 Gbps
Bus Interface	PCI Express 5.0 x16
Outputs	3× DisplayPort 2.1b, 1× HDMI 2.1b; up to 4 displays; max 7680×4320
Power Connector	1× 16-pin (12V-2×6); adapter to 2× PCIe 8-pin included
Recommended PSU	750W
Dimensions	282 × 110 × 50 mm; ~2.5-slot; NVIDIA SFF-Ready
Cooling	WINDFORCE 3X: Hawk fans, vapor chamber, thermal gel, reinforced backplate
Key Technologies	DLSS 4, Reflex, NVIDIA Studio, 9th-gen NVENC, G-SYNC, DirectX 12, OpenGL 4.6

Ideal Users

• 1440p gamers: the definitive 1440p ultra card of this generation.
• RTX 3060/4060 owners: a true generational upgrade worth the jump.
• Compact builders: SFF-Ready length fits cases that reject 320mm+ cards.
• Streamers & editors: NVENC and Studio drivers on a mid-range budget.
• Value hunters: compare with the RTX 5080 if you want more — or the RTX 4060 class to spend less.

What’s in the Box

• Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB graphics card
• 12V-2×6 to 2× PCIe 8-pin power adapter
• Quick guide / manual

FAQs

Q: Is 12GB VRAM enough in 2026?
A: For 1440p ultra and entry 4K — yes, comfortably. GDDR7’s high bandwidth stretches the 12GB further than older 12GB cards. Only heavy 4K ultra-texture + modding scenarios benefit from 16GB.

Q: RTX 5070 vs RTX 4070 Super — which is better?
A: The 5070 wins on features (DLSS 4 frame generation is exclusive to the 50 series) and efficiency, with broadly similar-to-better raster performance.

Q: What PSU do I need?
A: 750W is the official recommendation — a comfortable fit for most mid-tower gaming PCs.

Q: Will it fit my case?
A: At 282 mm long it’s shorter than most flagships and SFF-Ready — measure your case’s GPU clearance to be sure.

Q: Does it support DLSS 4?
A: Yes — full DLSS 4 with Multi Frame Generation, plus Reflex and the latest Studio/Broadcast suite.

Q: Is this genuine with warranty?
A: Yes — brand-new, factory-sealed, with local warranty support through NexGenShop.

Q: How much better is it than an RTX 4060 Ti?
A: Substantially — roughly 25–35% faster in rasterized games depending on title, plus DLSS 4 frame generation which the 4060 Ti lacks entirely. If your budget stretches to the 5070, the generational features alone justify it.
