Description

Professional 4×4 Video Routing Engine for Enterprise Multi-Display Management

The IDATA HDMI-MX44 is a high-performance video routing solution built to handle intensive multimedia commercial matrix distribution with ease. If managing multiple video sources across separate presentation monitors is causing cable clutter or display drops, setting up this industrial-grade MATRIX SWITCH on your rack provides a clean operational solution. Engineered to support high-end corporate boardrooms, digital educational systems, control centers, and broad security setups across Pakistan, this unit allows any of your four digital inputs to target any combination of your four display screens simultaneously.

Uncompromised True 4K 60Hz Ultra HD Clarity and HDR10 Color Compliance

Deliver stunning, pixel-perfect image accuracy to every connected display panel in your network. Operating on standard HDMI 2.0 infrastructure, this robust MATRIX SWITCH outputs gorgeous 4096×2160 video resolutions at a fluid 60Hz refresh rate. Complete compatibility with HDR10 ensures your media streams maintain striking contrast ratios and deep, realistic color gradations. Furthermore, full compliance with modern HDCP 2.2 copy protection standards means you can stream protected digital television contents or premium commercial video files without running into dark screen interruptions.

Seamless Signal Management, Intelligent Down-Scaling, and Cinematic Audio

Say goodbye to annoying screen flickering or visual drops during device transitions. This advanced hardware engine uses intelligent EDID management tools to match audio and video formats instantly, while built-in smart circuitry provides auto down-scaling on two outputs so you can run older 1080p monitors right alongside premium 4K screens. Audio performance is equally enterprise-grade, carrying full passthrough for high-fidelity formats like Dolby Atmos, DTS-HD Master Audio, and LPCM 7.1 surround sound to deliver an elite auditory presentation.

Industrial Metal Housing Equipped with Versatile Remote Control Formats

Integrating your multi-room hardware arrays is highly flexible, fast, and simple. The compact, rack-mountable MATRIX SWITCH metal chassis offers multiple management modes, allowing you to cycle inputs via front panel buttons, use an IR remote, or leverage advanced network workflows through WebGUI or RS232 protocols. Enclosed inside a heavy-duty black metal casing with industrial ESD surge protection, the hardware stands up to lightning strikes and power surges to keep your commercial media network active around the clock.

---

Detailed Technical Specifications Sheet

Feature Category	Detailed Technical Specification
Product Classification	4×4 HDMI Matrix Selector Assembly (Model: HDMI-MX44 / VS424HD4K60)
Signal Routing Matrix	4 Discrete HDMI Inputs / 4 Discrete HDMI Outputs
HDMI & HDCP Versions	HDMI 2.0 (YUV 4:4:4) | Backward Compatible with HDCP 2.2 & 1.4
Maximum Video Resolution	4096 x 2160 Pixels @ 60Hz / 3840 x 2160 @ 60Hz (True 4K Ultra HD)
Data Bandwidth Speeds	18 Gbps High-Speed Transmission Rate | 600MHz Bandwidth
Surround Audio Formats	Dolby Atmos, Dolby TrueHD 7.1, DTS-HD, LPCM 7.1, Dolby Digital plus
Control Interface Formats	Front Pushbuttons, IR Remote Control, RS-232 Serial Terminal (3-Pin), WebGUI Control
Advanced Video Features	HDR10 Support, EDID Management, Auto Down-Scaling on 2 Outputs
Chassis Dimensions	210.0 mm x 80.0 mm x 21.0 mm (Ultra-compact profile format)
Electrical Requirements	DC 5V/1A External Power Supply Block | Consumption < 4 Watts

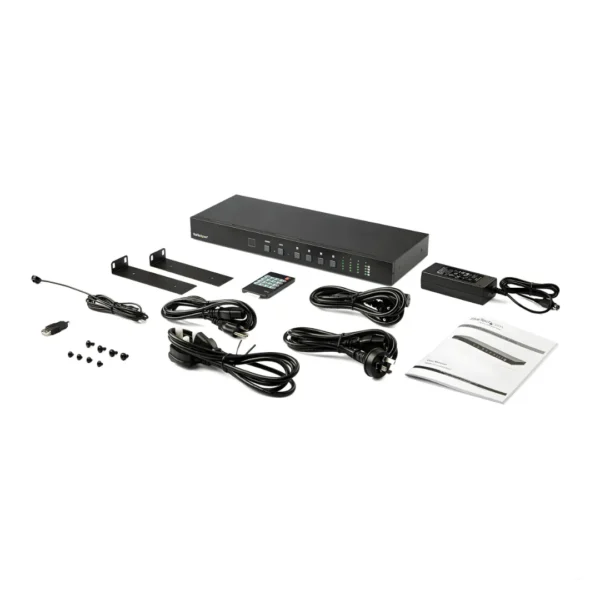

What’s Included inside the Retail Product Box

• 1x Professional 4×4 HDMI Matrix System Hub
• 1x DC 5V/1A External Power Supply Adapter
• 1x Infrared (IR) Wireless Remote Control Unit
• 2x Metal Rack-Fixing Mounting Tabs with 6x Assembly Screws
• 2x Dedicated Grounding Screws & 1x Serial Terminal Control Block

Premium Commercial Video Network Systems Across Pakistan

Deploy a stable multi-display matrix network across your commercial environment today. Enjoy total buying security backed by a complete 2-Year Professional Warranty program to protect your hardware investments reliably.
