Description

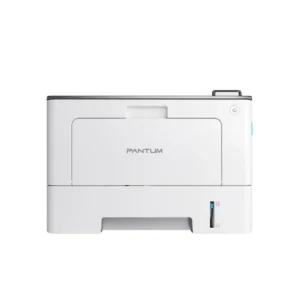

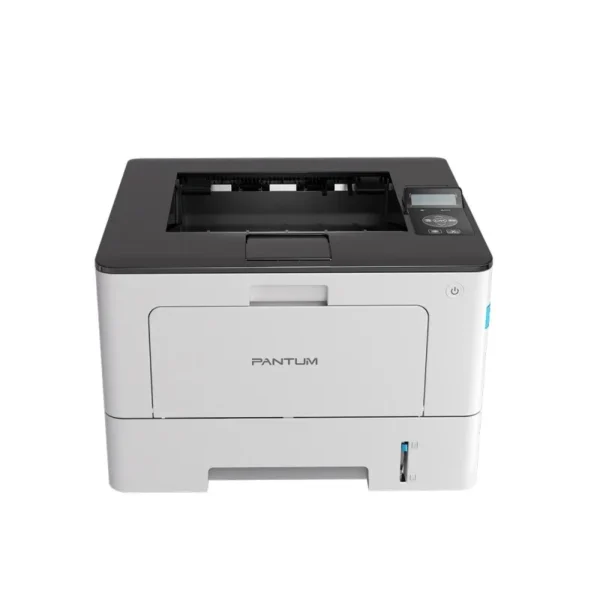

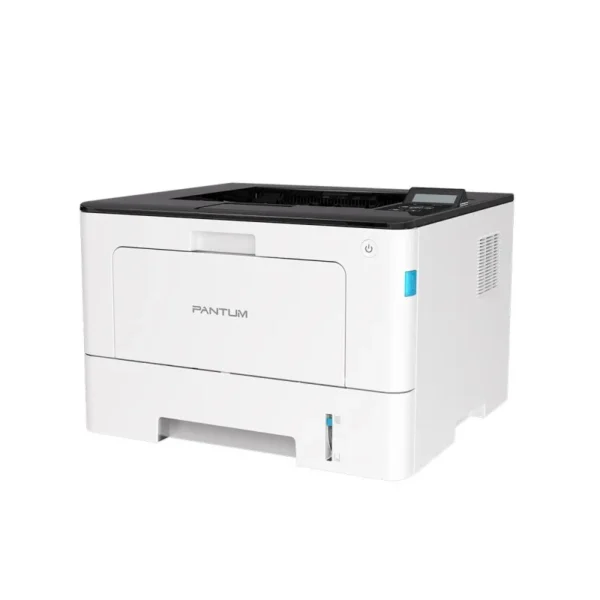

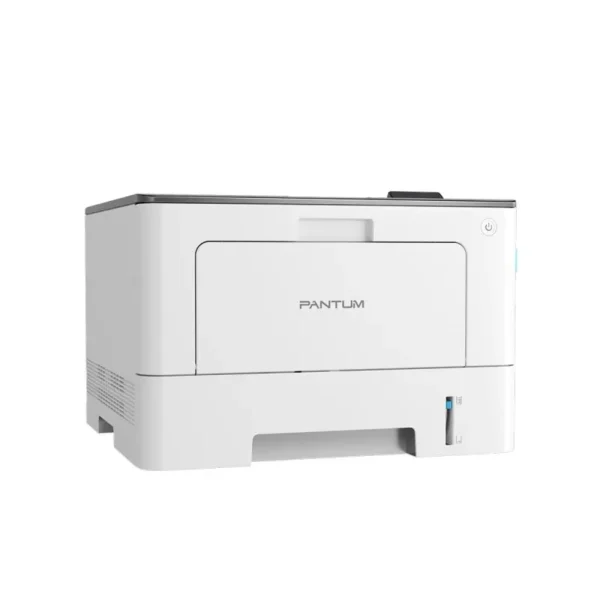

Pantum BP5100DW | High-Speed Mono Laser Single Function Printer
Elevate your office productivity with the Pantum BP5100DW, a robust, high-speed single function printer engineered for heavy-duty professional environments. Designed to handle the demands of modern business, this powerhouse delivers a blistering print speed of 40 pages per minute (A4). Whether you are printing dense reports or daily documents, the automatic duplex printing feature ensures that you save time and paper without compromising on quality. Its internal reinforced metal frame provides the durability required for long-term, high-volume use, making it a reliable workhorse for your office.
Connectivity and convenience are at the forefront of the Pantum BP5100DW design. With dual-band Wi-Fi (2.4G and 5G) and NFC touch-to-print capabilities, your team can print seamlessly from any device, including smartphones, tablets, and laptops. Unlike traditional printers that require complex setups, this single function printer features a one-step driver installation process. Simply plug in the included USB data cable, and you are ready to start printing in seconds. This user-centric approach ensures that your staff can spend more time working and less time troubleshooting hardware.
Scalability is another key strength of the Pantum BP5100DW. While it comes with a standard 250-page tray, it supports optional dual 550-page trays, pushing your total input capacity to an impressive 1,410 pages for continuous, high-volume output. The single function printer is also incredibly cost-effective, thanks to high-yield toner options that reach up to 15,000 pages, significantly lowering your cost per page. If you are looking for a stable, fast, and high-capacity printing solution for your business, the BP5100DW is the perfect investment for “designing for tomorrow.”
Product Spec
|
Model
|
|
|
Print
|
| Print Speed |
40ppm(A4)/42ppm(Letter) |
| First Print out time |
≤6.9s |
| Recommended monthly page volume |
750 to 4000 Pages |
| Monthly Duty Cycle(1) |
100,000 Pages |
| Print resolution |
Max.1200*1200 dpi |
| Printer language |
PCL5e、PCL6、PS |
| Control panel |
2 line LCD |
| Processor speed |
1.2 GHz |
| Memory |
512 MB |
| Duplex printing |
Yes |
| Mobile printing capability |
Airprint、Mopria，iOS App/Android App |
| NFC function |
Yes |
|
|
Paper handling
|
| Paper input tray |
Standard paper tray : 250 Pages, Optional paper tray: PT-511H，550 Pages(Maximum:2) ；Multipurpose paper tray：60 Pages |
| Paper output tray |
150 Pages |
| Media types |
Paper(plain, thick, thin,recycled),Transparency, Cardstock, Label, Envelope(4) |
| Media sizes |
A4, A5, JIS B5, IS0 B5, A6, Letter, Legal,Executive,Folio,Oficio,Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2 |
| Media weight |
Input tray：60-120g/㎡ ；Multipurpose tray：60-200g/㎡ ；Optional tray：60-120g/㎡ |
|
|
General
|
| Dimensions(W×D×H) |
364*344*257mm |
| product Weight(with cartridge) |
9.3kg |
| package size(W×D×H) |
452*427*332mm |
| package Weight(with cartridge) |
10.9kg |
| Operating temperature range |
Recommended temperature:10～32℃ ；Humidity range：20% ～ 80% |
| Input voltage |
110V:AC100-127V,50/60Hz,14A ；220V:AC220-240V,50/60Hz,7A |
| Noise Level |
Print≤ 54dB（A） Ready≤30dB（A） |
| Power consumption |
Print average≤650W； Ready≤50W ；Sleep≤1W |
| Operating system compatibility |
Microsoft Windows： Server2008/Server2012/Server2016/XP/Vista/Win7 /Win8/Win8.1/Win10/Win11（32/64 Bit）； Mac OS：10.8/10.9/10.10/10.11/10.12/10.13/10.14/10.15/11/12； Linux：Ubuntu 14.04/16.04/18.04/20.04 /Debian 10.0/Centos 7（32/64 Bit）；Astra Linux Special Edition V1.6/Redhat 8.0.0/ Centos 8.2(64 Bit) |
| Interface |
High-speed USB 2.0；IEEE 802.3 10/100/1000Base-Tx ；WiFi(2.4G/5G)：IEEE 802.11a/b/g/n; |
|
|
Supplies
|
| Consumable Type |
Toner Cartridge & Drum Unit |
| Starter cartridge(2) |
TL-5120: 3000 Pages |
| Starter drum unit(3) |
DL-5120: 30000 Pages |
| Standard cartridge(2) |
TL-5120:3000 Pages ；TL-5120H:6000 Pages ；TL-5120X:15000 Pages |
| Standard drum unit (3) |
DL-5120: 30000 Pages |
|
|
Note
|
| (1) |
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Pantum laser printer devices, and does not refer to actual maximum image output per month. |
| (2) |
Toner capacity is based on ISO 19752. |
| (3) |
Drum unit lifetime is based on 3 average letter/A4-size pages per print job and 5% coverage,actual lifetime affected by different printing habits and printing environment. |
| (4) |
When you print envelopes, please set the printing paper type to envelopes, and open the rear cover of the device and pull down the two blue handles according to the prompts popped up by the driver, and put the envelopes into the multipurpose feeder to get the best envelopes print effect. |
|
