Description

Overview

If load shedding and rising electricity bills are cutting into your budget, the Solar Hybrid Inverter 2200VA is the upgrade your home or small business has been waiting for. This 2200VA/1800W hybrid inverter is built around an efficient 24V battery system and accepts up to 1650W of solar panels, with a built-in MPPT solar charger that extracts the maximum possible energy from every hour of sunlight. It combines an inverter, a solar charge controller and an AC battery charger in one compact wall-mountable unit, so you can run your essential loads on solar during the day, store surplus energy in batteries, and fall back to WAPDA or generator power automatically when the sun goes down.

Designed for Pakistani conditions, this solar hybrid inverter handles the appliances a typical household or small office depends on — fans, LED lights, energy savers, LED TVs, laptops, Wi-Fi routers, CCTV systems and mobile chargers — and its high surge tolerance also copes with the start-up current of refrigerators and water pumps within its rated capacity. The informative LCD display shows input voltage, output load, battery status and charging mode at a glance, while the intelligent cooling fan only spins up when needed, keeping the unit quiet and dust-free for longer life.

Key Benefits

• Three devices in one: a 1800W inverter, an MPPT solar charge controller and an AC mains charger integrated into a single unit — no separate controller boxes, no messy wiring.
• Cut your electricity bill: up to 1650W of solar panels feed your loads directly during daylight hours, so expensive grid units are only used as backup.
• Automatic, uninterrupted power: the inverter switches between solar, battery and grid in milliseconds, so your computers, routers and CCTV never notice a power cut.
• Battery-friendly charging: multi-stage MPPT charging with selectable battery types (lead-acid, GEL, AGM and lithium) protects your battery bank and extends its service life.
• Built for local conditions: wide AC input voltage range tolerates the voltage fluctuations common on the Pakistani grid, and full electronic protections guard against overload, short circuit and over-temperature.
• Expandable when you are ready: start with a modest panel array and add more panels later, up to the 1650W maximum, without replacing the inverter.

Detailed Features of the Solar Hybrid Inverter 2200VA

True hybrid operation. Unlike a basic UPS that only charges from the grid, this unit prioritises free solar energy. In solar-priority mode it powers your loads straight from the panels while simultaneously topping up the batteries; any shortfall is drawn from the grid only as a last resort. You can also select grid-priority or battery-priority modes to match your usage pattern and tariff.

Advanced MPPT solar charging. The built-in Maximum Power Point Tracking charger continuously adjusts to the panels’ optimal operating point, harvesting up to 30% more energy than older PWM controllers, especially in cloudy or low-light conditions. With a maximum PV array power of 1650W and a charging current of up to 55A, a typical 24V setup with three to four 550W panels pairs perfectly with this inverter.

Clean, stable AC output. The inverter produces a smooth sine-wave 220–240V AC output at 50/60Hz, safe for sensitive electronics such as LED TVs, computers, medical devices and modern inverter-type appliances. Output voltage regulation keeps your equipment running steadily even as battery voltage or solar input varies through the day.

Comprehensive protection suite. Overload protection, output short-circuit protection, over-voltage and under-voltage battery cut-offs, reverse-polarity protection and over-temperature shutdown are all built in. If anything goes wrong, the LCD shows a fault code so a technician can diagnose the issue in minutes rather than hours.

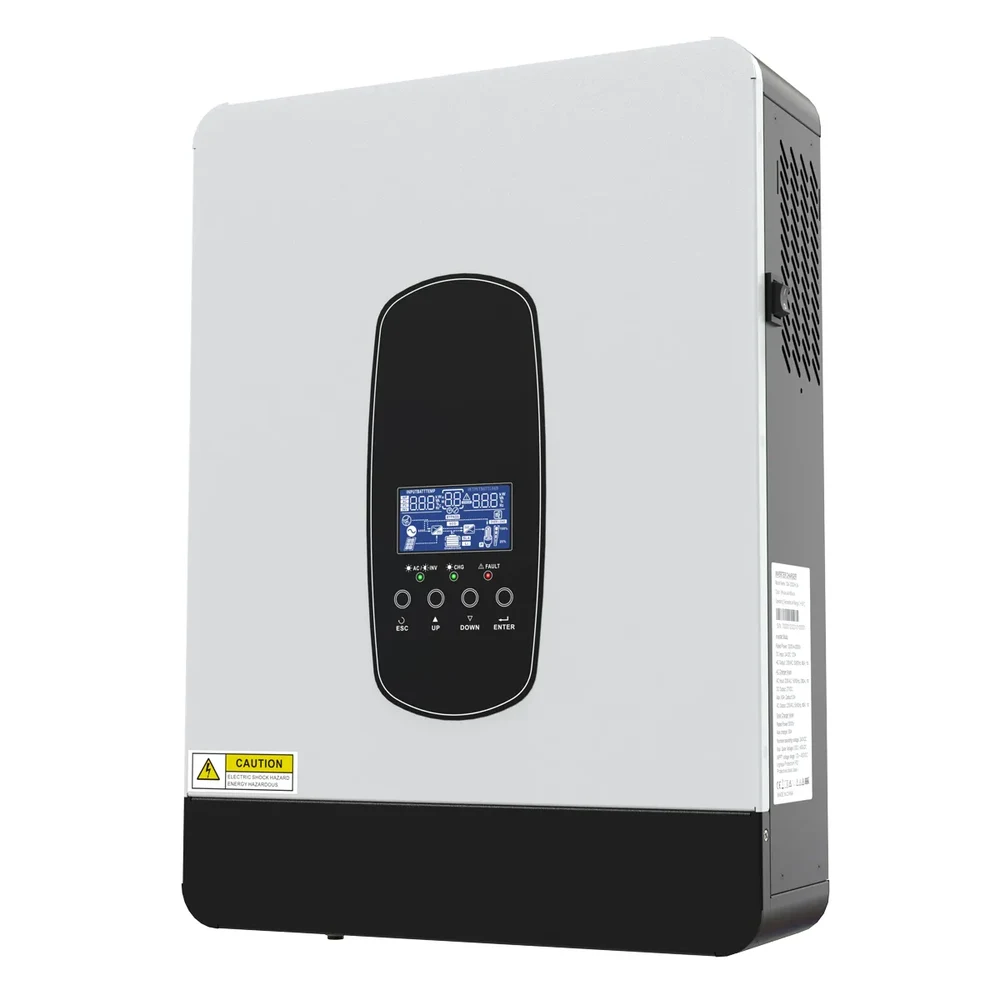

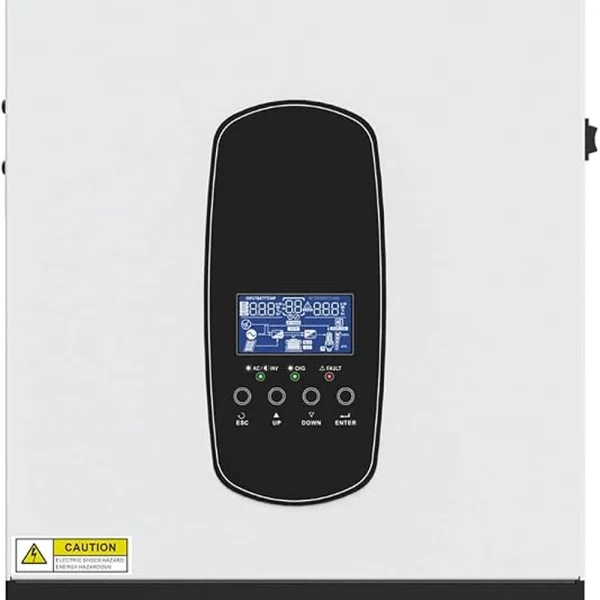

Smart, informative display. The front-panel LCD reports PV input voltage and current, battery voltage and charge state, AC input/output status, load percentage and active operating mode. Four navigation buttons (ESC, UP, DOWN, ENTER) give access to the settings menu, where charging currents, battery type, output voltage and priority modes can be configured without any extra software.

Optional remote monitoring. An RS232/RS485 communication port is provided for connection to an optional Wi-Fi module, allowing system monitoring from a smartphone app — check generation, consumption and battery status from anywhere.

Technical Specifications

Specification	Details
Rated Power	2200VA / 1800W
Battery System Voltage	24VDC (2 × 12V batteries in series)
Max. Solar (PV) Input Power	1650W
Solar Charger Type	Built-in MPPT
Max. PV Array Open-Circuit Voltage	100VDC
MPPT Operating Voltage Range	30–80VDC
Max. Solar Charging Current	55A
AC Input	220–240VAC, 50/60Hz (wide voltage range)
AC Output	220–240VAC, 50/60Hz
Output Waveform	Sine wave
Transfer Time	≤20 ms (typical)
Supported Battery Types	Lead-acid, GEL, AGM, Lithium (LiFePO4) — selectable
Protections	Overload, short-circuit, over-voltage, battery under-voltage cut-off, reverse polarity, over-temperature
Display	LCD with PV, battery, load and fault-code readouts
Cooling	Intelligent temperature-controlled fan
Communication	RS232/RS485 port (optional Wi-Fi module)
Operating Temperature	0°C to 55°C
Installation	Wall-mountable indoor unit

Ideal Users

• Homes facing daily load shedding: keep fans, lights, TV, Wi-Fi and phone charging alive through every outage without the noise and fuel cost of a generator.
• Small offices and shops: protect computers, POS systems, printers and CCTV from abrupt shutdowns while cutting daytime grid consumption.
• Solar beginners: an all-in-one hybrid design means one purchase, one installation and one manual — ideal if this is your first solar system.
• Rural and farm properties: run lighting, water pumps (within capacity) and communication equipment where the grid is unreliable or absent.
• Budget-conscious upgraders: start with panels now and add batteries later, or vice versa — the hybrid architecture grows with your needs up to 1650W of solar.

Pair it with compatible solar panels, deep-cycle solar batteries and our range of solar charge controllers to build a complete off-grid or hybrid system from a single trusted store.

What’s in the Box

• 1 × Solar Hybrid Inverter 2200VA/1800W (24V, 1650W solar capacity)
• 1 × User manual with wiring diagrams and settings guide
• 1 × Set of battery connection cables (model-dependent)
• 1 × Wall-mounting bracket and fixing hardware (model-dependent)

FAQs

How many solar panels can I connect to this inverter?

Up to 1650W of panels in total. A popular configuration is three 550W panels in parallel (keeping the array open-circuit voltage under 100VDC and within the 30–80V MPPT window). Always wire the array so its voltage stays inside the specified MPPT range.

Which batteries work with this 24V hybrid inverter?

Any 24V battery bank — typically two 12V batteries in series. The charger supports lead-acid (flooded), GEL, AGM and lithium (LiFePO4) types; select the matching battery type in the settings menu so charging voltages are correct.

Can it run a refrigerator or a water pump?

It can run a standard household refrigerator (typically 150–250W running) thanks to its surge tolerance for compressor start-up, provided the total simultaneous load stays under 1800W. Larger 1HP+ water pumps may exceed the surge limit — check your pump’s starting current before connecting it.

Does it work without solar panels, like a normal UPS?

Yes. With batteries and a grid connection it works exactly like a UPS/inverter, charging the batteries from the grid and providing backup during outages. Adding panels later simply reduces grid dependence.

What is the difference between this and a PWM-based inverter?

The built-in MPPT charger tracks the panels’ maximum power point continuously, delivering up to 30% more charging energy than PWM designs, particularly in cloudy weather and during morning/evening hours.

Is professional installation required?

We strongly recommend installation by a qualified solar electrician. Correct DC wiring, fusing and earthing are essential for safety and for the protections to work as designed. Incorrect battery polarity can damage the unit.
