Description

High-Speed Hands-Free Efficiency for Busy Commercial Counters

High-volume retail checkout lanes, pharmacies, and logistics hubs need fast, reliable hardware that keeps queues moving smoothly. The Speed-X SX-9700 Desktop Barcode Scanner delivers hands-free scanning performance straight to your point-of-sale terminal. Built around a high-resolution 1280 × 800 pixel CMOS imaging sensor and a 32-bit decoding processor, this desktop unit captures standard 1D linear barcodes alongside 2D QR codes, Data Matrix, and PDF417 matrix symbologies from paper labels, glossy packaging, or smartphone screens.

Featuring an auto-sensing optical window, cashiers and counter operators simply present items in front of the scanner for instant recognition, eliminating manual trigger clicks and speeding up customer transactions.

Key Benefits of Desktop Barcode Scanner

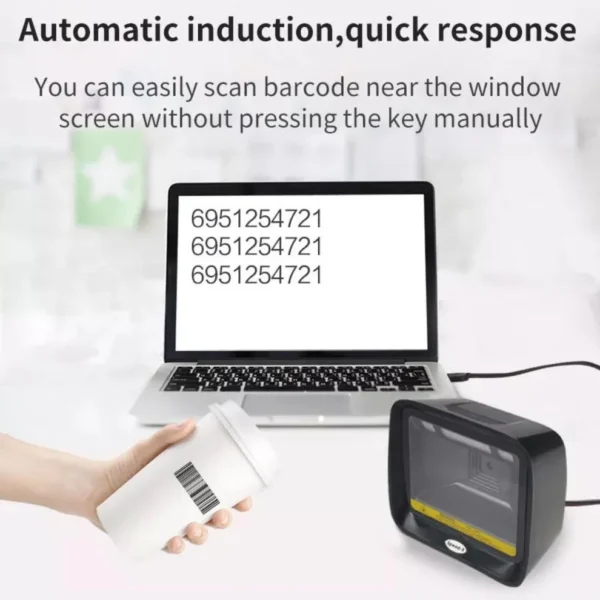

Hands-Free Automatic Motion Sensing

The intelligent infra-red auto-sensing sensor instantly detects items passed across its wide field of view. By keeping staff hands completely free to handle merchandise, payment terminals, and packaging, checkout throughput increases significantly.

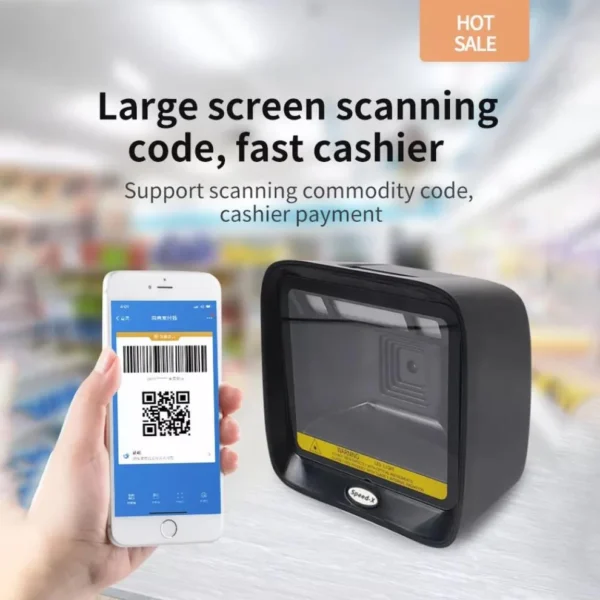

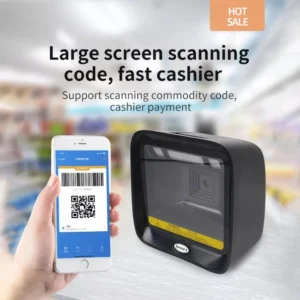

Seamless Screen and Paper Label Capture

Equipped with a 5600K white LED illuminator and a 625nm red aiming light, the advanced CMOS sensor effortlessly reads worn paper tags, dense 5mil codes, and digital QR codes directly from customer smartphone displays for loyalty passes or mobile wallets.

Wide-Angle Omnidirectional Scanning Window

With generous reading angles (±360° roll, ±80° pitch, and ±70° skew), cashiers do not need to align product barcodes precisely. Items can be scanned quickly in almost any orientation across a 0 to 450mm scanning distance.

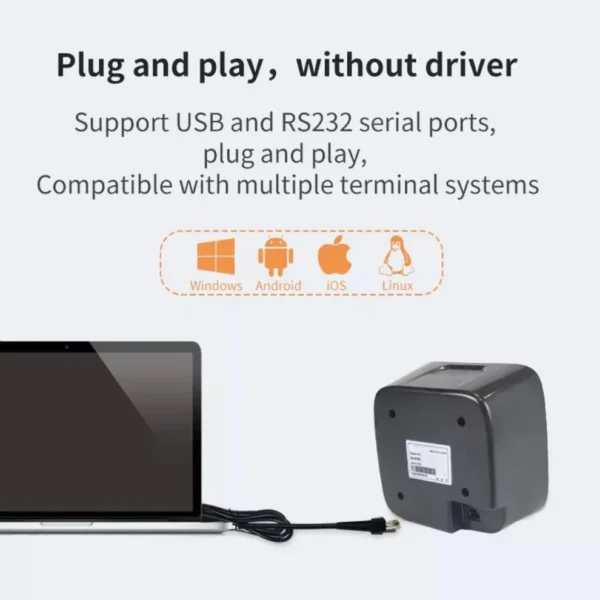

Plug-and-Play USB Integration

Designed for immediate deployment, the wired USB connection interfaces directly with POS software, ERP systems, and retail management databases across Windows, macOS, and Linux operating systems without driver downloads.

Features and Advantages of Desktop Barcode Scanner

Robust Commercial Construction

Engineered for continuous daily operation in demanding commercial environments, the compact footprint fits neatly on crowded checkout tables, cash registers, or service counters without occupying vital work space.

Audible and Visual Feedback

Clear acoustic buzzers and status LEDs confirm every successful scan instantly, giving cashiers confidence during rapid item processing and preventing duplicate entries.

Broad Symbology Support

Decodes virtually all global barcode formats, including UPC/EAN, Code 128, Code 39, GS1 DataBar, QR Code, Data Matrix, Micro PDF417, Aztec, and HanXin codes.

Technical Specifications of Desktop Barcode Scanner

Specification	Details
Model & Type	Speed-X SX-9700 2D Desktop Hands-Free Scanner
Optical Sensor Resolution	1280 × 800 CMOS Image Sensor
Processor	32-bit High-Speed CPU
Minimum Resolution	≥5 mil (Code 39, PCS 90%)
Scanning Range	0 – 450 mm
Illumination & Aiming	5600K White LED Illumination
Supported 1D Barcodes	UPC-A, UPC-E, EAN-13, EAN-8, Code 128, Code 39, Code 93, Codabar, Interleaved 2 of 5, GS1 DataBar, MSI, Plessey
Supported 2D Barcodes	QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec Code, HanXin Code, MaxiCode
Scanning Angles	Roll: ±360°, Pitch: ±80°, Skew: ±70°
Print Contrast	≥25% Minimum Reflectance Difference
Connectivity Interface	USB (HID Keyboard / Virtual COM Port)
System Compatibility	Windows (XP/7/8/10/11), macOS, Linux
Package Contents	Speed-X SX-9700 Desktop Scanner, Integrated USB Cable, User Manual

Ideal Users of Desktop Barcode Scanner

The Speed-X SX-9700 hands-free scanner is engineered for high-throughput commercial and logistics environments:

• Supermarkets, Hypermarkets, & Retail Outlets: Streamlining cash register billing, price checks, and e-voucher redemptions.

• Logistics & Courier Parcel Processing: Accelerating inbound/outbound parcel scanning across top Pakistani courier networks, including TCS, Leopards Courier Services, M&P, Trax, PostEx, BlueEx, Call Courier, Rider, Swyft Logistics, DEX (Daraz Express), Speedaf, OCS, and Bykea.

• Pharmacies & Medical Clinics: Safely reading small-format Data Matrix codes on medicine packaging and prescriptions.

• Ticketing Counters & Event Venues: Validating digital QR codes directly off attendees’ mobile phone screens.
