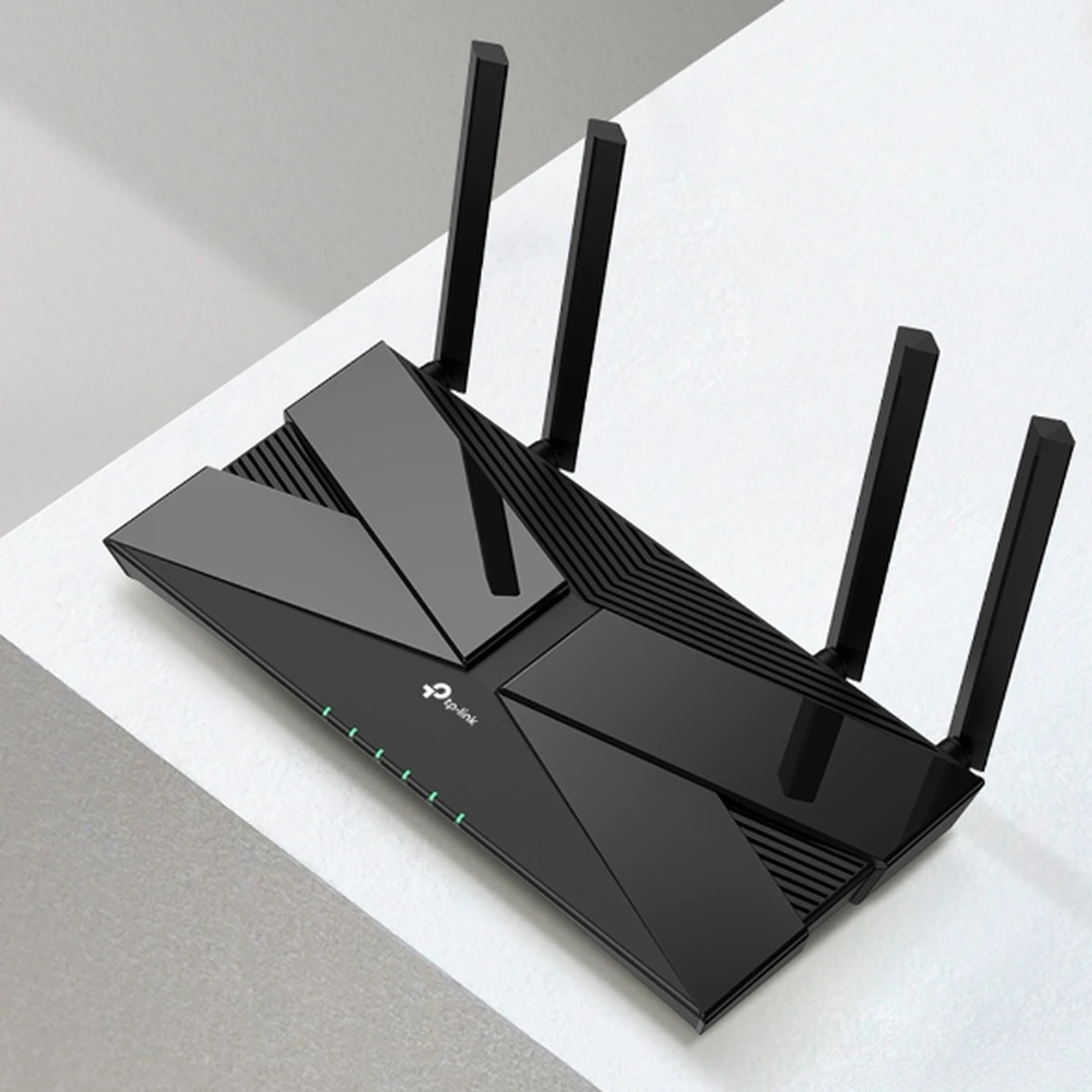

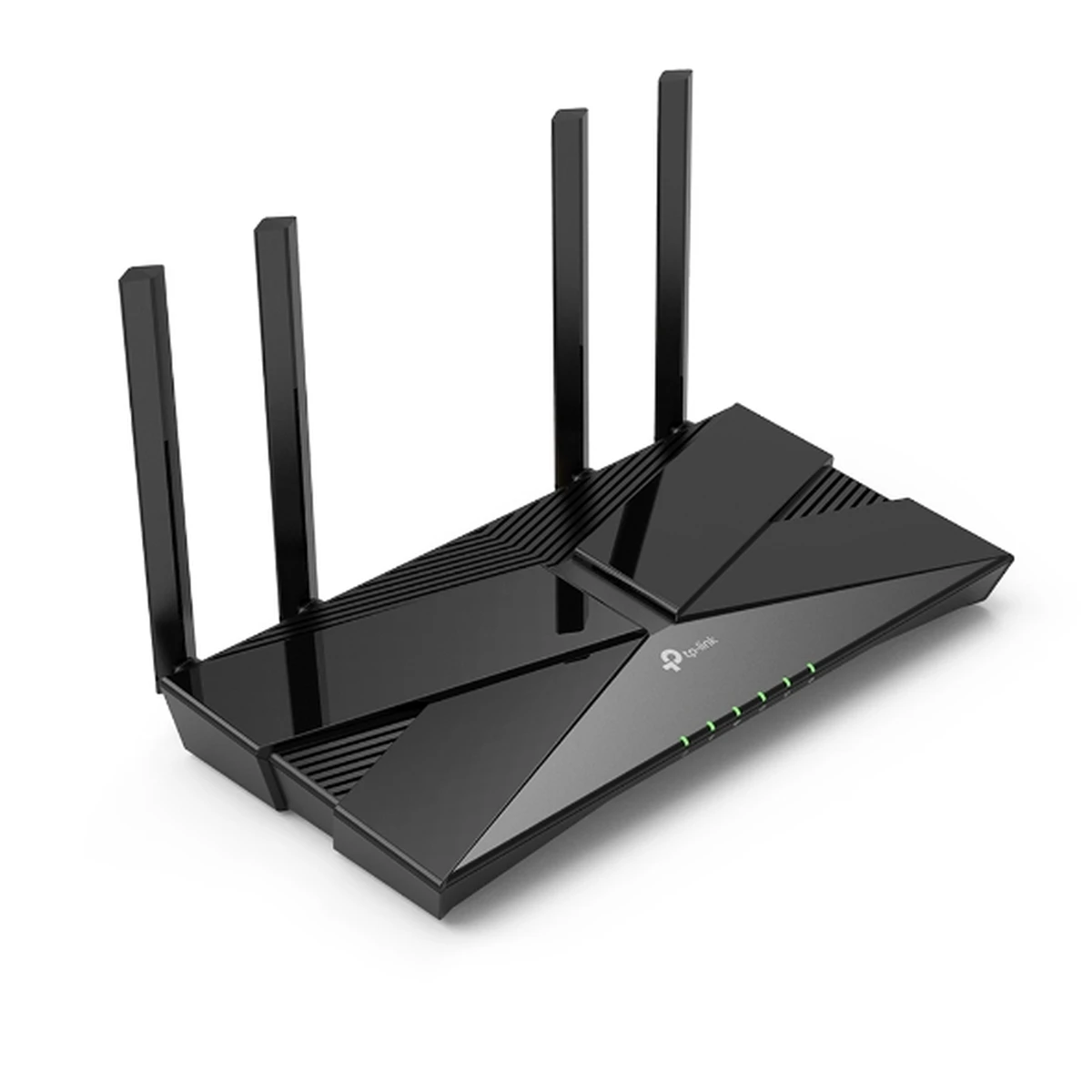

TP-Link Archer AX23 AX1800 Wi-Fi 6 Router

₨16999.00

  • AX1800 Wi-Fi 6 — 1201 Mbps on 5 GHz
  • 4 antennas + beamforming for 2–3 bedrooms
  • 1 Gigabit WAN + 4 Gigabit LAN ports
  • WPA3, EasyMesh & OneMesh, Router/AP modes

Description

Overview

The TP-Link Archer AX23 AX1800 Wi-Fi 6 Router is the sensible entry point to Wi-Fi 6 for Pakistani homes: AX1800 speeds, four high-performance antennas, full Gigabit ports and WPA3 security at a mid-range price. It delivers 1201 Mbps on the 5 GHz band plus 574 Mbps on the 2.4 GHz band, which is ample for fibre plans up to a gigabit on wired devices and fast, stable wireless for streaming, study, work calls and gaming in a typical 2–3 bedroom home.

Wi-Fi 6 improves on Wi-Fi 5 in the ways that matter in a busy household: OFDMA lets the router serve several devices in a single transmission slot, cutting lag when everyone is online at once, while MU-MIMO and four streams keep throughput high across phones, laptops, TVs and smart devices. Beamforming focuses signal towards each device instead of spraying it evenly, and a dual-core CPU keeps routing, firewall and QoS work smooth under load. Add EasyMesh and OneMesh support, and the AX23 can grow from a single router into whole-home mesh coverage simply by adding a compatible extender or router later.

TP-Link Archer AX23 AX1800 Wi-Fi 6 Router

Key Benefits

  • Real Wi-Fi 6 upgrade: AX1800 speeds with OFDMA and MU-MIMO for lower latency with many devices online.
  • Four antennas plus beamforming: A signal-boosting array reaches rooms a two-antenna router leaves weak.
  • Full Gigabit wired: 1 Gigabit WAN plus 4 Gigabit LAN ports for full fibre speed on wired devices.
  • WPA3 security: The latest Wi-Fi security protocol with stronger password protection and defence against brute-force attacks.
  • Mesh-ready: EasyMesh-compatible and OneMesh-supported, so dead zones can be fixed by adding a compatible device later.
  • Works with most ISPs: Dynamic IP, Static IP, PPPoE, L2TP and PPTP support.
  • Simple control: Tether app, parental controls, guest networks and QoS by device.

Detailed Features of the TP-Link Archer AX23 AX1800 Wi-Fi 6 Router

Speed on paper only helps if it survives a busy evening. The AX23’s Wi-Fi 6 toolset is built for that test. OFDMA splits each channel into smaller resource units, so a router talking to a phone, a smart TV and a laptop does not have to serve them strictly one after another; it can pack their small packets together and cut waiting time. That is why Wi-Fi 6 feels faster even when headline speed looks similar: latency drops and calls stay smooth while someone else streams 4K.

Coverage comes from four fixed high-performance antennas arranged as a signal-boosting array, with beamforming detecting connected devices and concentrating signal towards them, including in previously hard-to-reach corners. TP-Link positions the AX23 for 2–3 bedroom houses, which matches most apartments and family homes. If the house is larger or has thick concrete walls, the mesh story matters: as an EasyMesh-compatible router, the AX23 can form a single-network whole-home system with EasyMesh extenders, giving one Wi-Fi name, smart roaming between nodes and one-click setup, instead of the old extender pattern of separate network names and manual switching.

The wired and software sides are equally complete for the price. Five Gigabit ports mean the fibre connection and up to four wired devices all run at full speed, with no 100 Mbps bottleneck anywhere. A dual-core CPU handles routing and NAT without choking under many-device loads. Security includes WPA3, a SPI firewall, access control, IP and MAC binding and guest networks on both bands, so visitors can be given internet without access to the home network. Parental controls allow content filtering, time limits and profiles for children, and QoS by device lets you prioritise a work laptop or gaming console over background downloads. VPN clients (OpenVPN, PPTP and WireGuard) are included for remote-access needs, and setup takes minutes through the Tether app or the web interface.

  • AX1800 dual-band Wi-Fi 6: 1201 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz, 4 streams.
  • 4 fixed antennas + beamforming: High-performance antennas forming a signal-boosting array.
  • Dual-core CPU: Keeps routing and multi-device traffic smooth under load.
  • Gigabit ports throughout: 1 x Gigabit WAN and 4 x Gigabit LAN, no Fast Ethernet bottleneck.
  • EasyMesh + OneMesh: Whole-home mesh with compatible TP-Link devices, one network name.
  • Router and Access Point modes: Use it as the main router, or as an access point behind an existing router.
  • Parental controls and QoS: URL filtering, time controls and QoS by device for family and work-from-home use.

Need more speed for a larger home? Compare the Archer AX53 AX3000 and the Archer AX73 AX5400, or browse all TP-Link routers at NexGenShop.

Technical Specifications

Specification Details
Model TP-Link Archer AX23
Wi-Fi Standard Wi-Fi 6 (IEEE 802.11ax/ac/n/a on 5 GHz, 802.11ax/n/b/g on 2.4 GHz)
Wireless Speed AX1800: 1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
Antennas 4 x fixed high-performance external antennas
Wireless Features OFDMA, MU-MIMO, beamforming, airtime fairness, 4 streams
Processor Dual-core CPU
WAN Port 1 x Gigabit WAN port
LAN Ports 4 x Gigabit LAN ports
Working Modes Router mode, Access Point mode
Mesh Support EasyMesh-compatible, OneMesh supported
Security WPA, WPA2, WPA3, WPA/WPA2-Enterprise, SPI firewall, access control, IP and MAC binding
Guest Network 1 x 5 GHz guest network, 1 x 2.4 GHz guest network
VPN Client OpenVPN, PPTP, WireGuard
WAN Types Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Management TP-Link Tether app, web interface, OTA firmware upgrade
Power Supply 12V / 1.5A
Buttons WPS/Wi-Fi button, power on/off button, reset button
Dimensions 260.2 x 135 x 41.6 mm

Ideal Users

  • Families upgrading to Wi-Fi 6: The affordable step from an older Wi-Fi 5 router, with a real multi-device improvement.
  • Work-from-home users: Stable video calls and fast file transfers while the rest of the household streams and games.
  • Students and small flats: Strong coverage for 2–3 bedroom homes, with parental controls and guest networks included.
  • Fibre subscribers: Full Gigabit ports make the most of fast fibre plans on wired devices.
  • Homes planning mesh later: Start with one AX23 now and add EasyMesh nodes if dead zones appear.
  • Budget-conscious buyers: Wi-Fi 6, WPA3 and Gigabit ports without paying flagship prices.

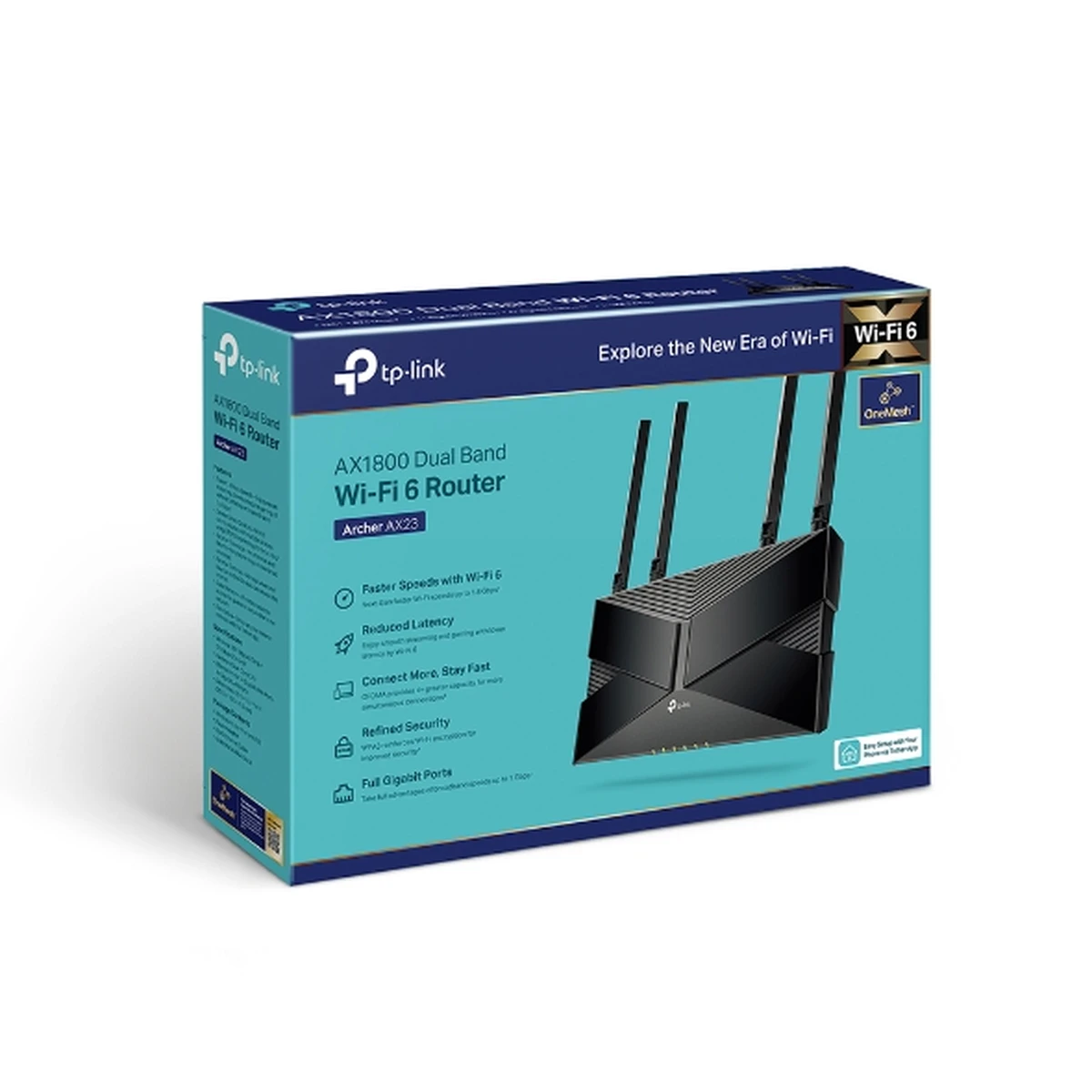

What’s in the Box

  • TP-Link Archer AX23 Wi-Fi Router
  • Power adapter
  • RJ45 Ethernet cable
  • Quick installation guide

FAQs

Q1: Is the AX23 enough for a 2–3 bedroom house?
A: Yes, that is its designed coverage class. Thick concrete walls or a much larger house may still need a mesh node, which the AX23 supports through EasyMesh and OneMesh.

Q2: Will it work with my ISP?
A: It supports Dynamic IP, Static IP, PPPoE, L2TP and PPTP, which covers the common connection types used by Pakistani fibre and broadband providers.

Q3: What is the difference between AX1800 and my internet speed?
A: AX1800 is the combined wireless link speed (1201 + 574 Mbps). Your internet speed is set by your ISP plan; the router’s job is to deliver that plan reliably to all your devices, wired and wireless.

Q4: Can I add mesh coverage later?
A: Yes. Add an EasyMesh-compatible extender or router and the AX23 forms a single mesh network with one Wi-Fi name and smart roaming.

Q5: Does it support WPA3?
A: Yes. It supports WPA, WPA2 and WPA3 (WPA3 needs WPA3-capable clients; older devices still connect with WPA2).

Q6: Can I use it as just an access point?
A: Yes. It has a dedicated Access Point mode for use behind an existing router or modem-router.
