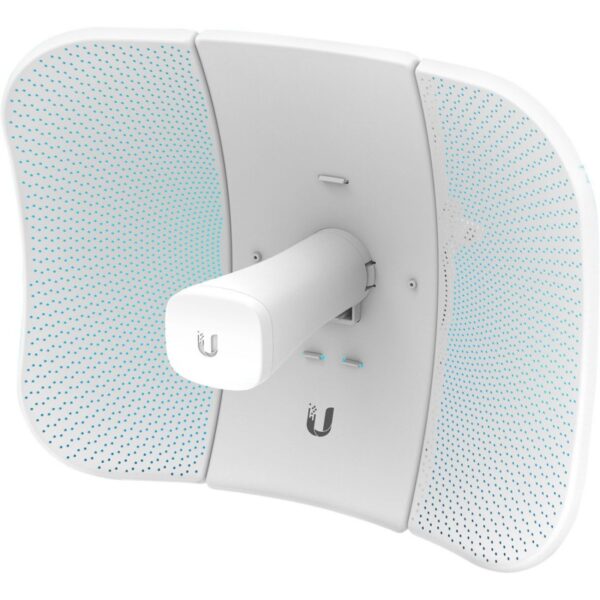

High-Performance Long-Distance Wireless Broadband Bridging LBE-5AC-Gen2

Establishing reliable internet links across extended physical distances requires specialized outdoor wireless hardware engineered for high gain and minimal interference. The Ubiquiti LiteBeam AC Gen2 (LBE-5AC-Gen2) provides internet service providers, outdoor surveillance networkers, and enterprise IT teams with an ultra-lightweight, high-throughput Point-to-Point (PtP) and Point-to-Multipoint (PtMP) bridge. Operating in the 5 GHz spectrum, this CPE device delivers real TCP/IP throughput exceeding 450 Mbps over long distances.

Key Benefits

High-Gain 23 dBi Directional Antenna

The LBE-5AC-Gen2 features a narrow 23 dBi directional beamwidth that focuses RF energy directly toward the target destination. This directional focus spatially filters out ambient RF noise, delivering stable wireless throughput even in congested frequency environments.

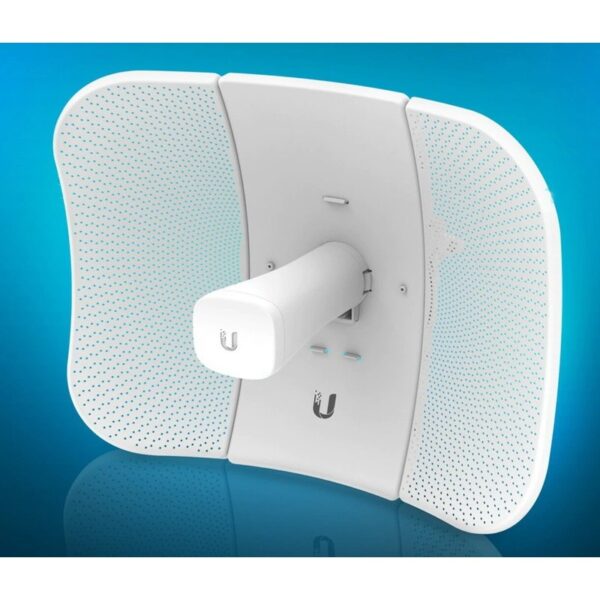

Integrated InnerFeed Technology

By integrating the entire radio system directly into the feedhorn of the antenna, InnerFeed eliminates the need for external RF coaxial cables. This design prevents cable signal losses, reduces mechanical failure points, and simplifies tower mounting.

Dedicated Wi-Fi Management Radio

Configure and manage your outdoor bridge effortlessly from the ground. An independent 2.4 GHz Wi-Fi management radio allows technicians to connect wirelessly using the UNMS (UISP) mobile app on iOS or Android devices for rapid setup and signal alignment without running physical cables.

Durable Outdoor Enclosure & Improved Mounting

Engineered for harsh outdoor weather conditions, the UV-stabilized plastic reflector withstands wind speeds up to 200 km/h (125 mph). Upgraded mounting hardware provides separate azimuth and elevation adjustments, along with a built-in bubble level for precise alignment.

Features and Advantages

Proprietary airMAX ac TDMA Protocol

Unlike standard Wi-Fi protocols, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots, maximizing spectral efficiency and network scalability.

Surge and ESD/EMP Protection

Built with industrial-grade protection against static discharge, supporting up to ± 24 kV contact and air ESD immunity to guard against seasonal lightning storms.

Gigabit Ethernet with Passive PoE

Includes a 10/100/1000 Mbps Gigabit Ethernet port and comes bundled with a 24V, 0.3A Gigabit Passive PoE adapter, enabling power and high-speed data transmission over a single Ethernet cable.

Advanced airOS 8 Operating System

Includes airMagic channel selection, airView real-time spectrum analyzer, and comprehensive RF diagnostic tools to optimize network performance dynamically.

Technical Specifications

Specification	Details
Model	LBE-5AC-Gen2
Operating Frequency	5 GHz (Worldwide: 5150–5875 MHz)
Throughput Speed	450+ Mbps
Antenna Gain	23 dBi
Networking Interface	(1) 10/100/1000 Gigabit Ethernet Port
Management Radio	2.4 GHz Dedicated Wi-Fi
Processor & Memory	MIPS 74Kc | 64 MB DDR2 RAM
Power Method & Supply	Passive PoE (Pairs 4, 5+; 7, 8 Return) | 24V, 0.3A Gigabit PoE Adapter Included
Max Power Consumption	7 Watts
Wind Survivability	200 km/h (125 mph)
Dimensions & Weight	362 × 273 × 203 mm | 907 g

Ideal Users

The Ubiquiti LBE-5AC-Gen2 Bridge is ideal for:

• Wireless Internet Service Providers (WISPs): Connecting rural subscribers to high-speed 5 GHz base stations.

• CCTV & Security Networks: Transmitting high-definition video feeds from remote outdoor cameras back to a central NVR recorder.

• Multi-Building Facilities: Linking separate office buildings, warehouses, agricultural sites, or farm buildings without laying expensive fiber cables.

• Event & Temporary Venues: Deploying rapid high-bandwidth internet connections across outdoor spaces.

Why Buy From NexGenShop.pk

Sourcing your networking gear from NexGenShop.pk ensures authentic products and dependable local backing:

• 100% Genuine Ubiquiti Products: Guaranteed original hardware complete with official PoE adapters and mounting kits.

• Fast Express Delivery Across Pakistan: Prompt, trackable shipping directly to Karachi, Lahore, Islamabad, Rawalpindi, and cities nationwide.

• Comprehensive Networking Catalog: Discover matching routers, access points, and switches under Printers & Scanners and networking categories directly at NexGenShop.pk.

Stay connected with our latest equipment updates on the official NexGenShop Facebook Page and follow our tech releases on NexGenShop Instagram.

Final Conclusion

The Ubiquiti LiteBeam LBE-5AC-Gen2 delivers exceptional long-distance wireless throughput, robust noise immunity, and simple mobile management in a lightweight dish design. Whether you are expanding a WISP network or bridging internet between separate buildings, this high-gain LBE-5AC-Gen2 CPE device provides reliable long-range connectivity. Order yours today from NexGenShop.pk.
