Description

Compact and Dependable High-Power Charging for Electric Vehicles

As electric vehicles become increasingly common across Pakistan, having a dedicated, high-capacity charging terminal at home or the workplace is essential. The ABL Wallbox eMH1 Basic 22kW offers a space-saving, German-engineered AC charging solution built for daily reliability. Delivering up to 22 kW of 3-phase power through an attached 6.35-meter Type 2 charging cable, this wall-mounted unit efficiently charges compatible electric cars while taking up minimal wall space in your garage, driveway, or commercial parking facility.

Key Benefits

High-Speed 22kW 3-Phase AC Charging Output

Capable of supplying up to 32 Amps across 3 phases (400V), the eMH1 Basic maximizes charging speed for vehicles equipped with high-capacity onboard AC chargers. For compatible EVs with 22 kW onboard capability, a typical 60 kWh battery can be charged from empty to full in approximately 2.7 hours under ideal conditions.

Integrated DC Fault Current Detection for Maximum Safety

Electrical safety is paramount when handling high-power EV chargers. The ABL Wallbox eMH1 Basic comes equipped with built-in electronic DC fault-current detection. This smart protective system continuously monitors for residual direct current faults during AC charging sessions, interrupting power automatically if a fault is detected to safeguard both your vehicle’s sensitive battery management system and your property’s electrical wiring.

Rugged Weatherproof IP54 Casing

Engineered to withstand diverse weather conditions, the IP54-rated housing shields internal electrical components against harmful dust accumulation and water splashes from any direction. This makes the wallbox equally suitable for sheltered indoor garages or outdoor parking bays.

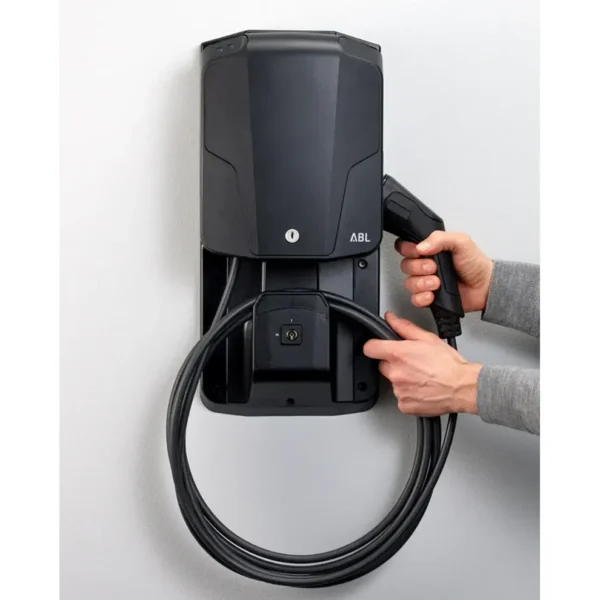

Fixed 6.35m Type 2 Cable for Everyday Convenience

Never worry about digging through your trunk for loose charging cords. The permanently attached 6.35-meter cable features an industry-standard Type 2 connector, allowing you to park and plug in effortlessly without removing extra cables from your vehicle.

Features and Advantages

Temperature and Welding Detection Protection

Advanced thermal monitoring prevents internal overheating during sustained high-amperage charging cycles. Furthermore, automatic welding detection checks contactor condition, disabling charging immediately if a welded contactor is detected to prevent equipment damage.

Clear Multi-LED Operational Status Display

Front-facing LED indicators provide instant visual feedback on operational states, active charging, error codes, and maintenance notifications at a glance.

Space-Saving, Modern German Design

Recognized as one of the smallest EV wallboxes in its performance class, the sleek ABL Wallbox eMH1 housing mounts cleanly on flat walls or dedicated mounting pedestals without cluttering limited parking areas.

Easy Standard Installation

Requires an upstream Type A Residual Current Circuit Breaker (RCCB) on-site during installation, making it straightforward for certified electricians to wire into standard 400V 3-phase power distribution boards.

Technical Specifications

Specification	Details
Model	ABL eMH1 Basic 22kW (Item No. 1W2208)
Charging Type	Mode 3 AC Charging
Maximum Power Output	Up to 22 kW
Electrical Supply	230/400 V, 3-Phase
Maximum Current	32 Amps per phase
Charging Connector	Integrated Type 2 Connector (IEC 62196-2)
Cable Length	Approximately 6.35 meters
Fault Protection	Integrated DC Residual Fault Current Detection
Ingress Protection Rating	IP54 (Dust and Splash Protection)
Operational Temperature	-25°C to +40°C
Mounting Type	Wall-mount or optional pole pedestal

Ideal Users

The ABL Wallbox eMH1 Basic 22kW Wallbox is ideal for:

• EV Owners at Home: Electric vehicle owners seeking safe, fixed-cable 3-phase charging in private garages or carports.

• Commercial Offices & Workplaces: Businesses offering dedicated EV charging amenities for employees, executives, and company fleets.

• Retail & Hospitality Venues: Hotels, restaurants, and shopping outlets installing customer destination charging stations.

• Real Estate Developers: Property managers outfitting modern residential apartments and parking facilities with future-ready EV infrastructure.

Why Buy From NexGenShop.pk

Sourcing your electric vehicle supply equipment from NexGenShop.pk ensures authentic products backed by dependable support across Pakistan:

• 100% Original ABL Products: Guaranteed genuine German-built charging hardware with official manufacturer backing.

• Fast Express Shipping Nationwide: Secure, trackable delivery to major cities including Lahore, Karachi, Islamabad, Rawalpindi, Multan, and Peshawar.

• Comprehensive Tech Catalog: Explore our full range of modern electronics and smart power equipment under Printers & Scanners and gadgets directly at NexGenShop.pk.

Stay informed on modern smart energy solutions via our official NexGenShop Facebook Page and check out our new tech arrivals on NexGenShop Instagram.

Final Conclusion

The ABL Wallbox eMH1 Basic 22kW delivers high-capacity 3-phase AC charging, integrated DC fault protection, and weatherproof durability in a surprisingly compact form factor. Complete with a fixed Type 2 cable, it offers electric vehicle owners a clean, safe, and dependable way to power up. Upgrade your home or business charging station today at NexGenShop.pk.
