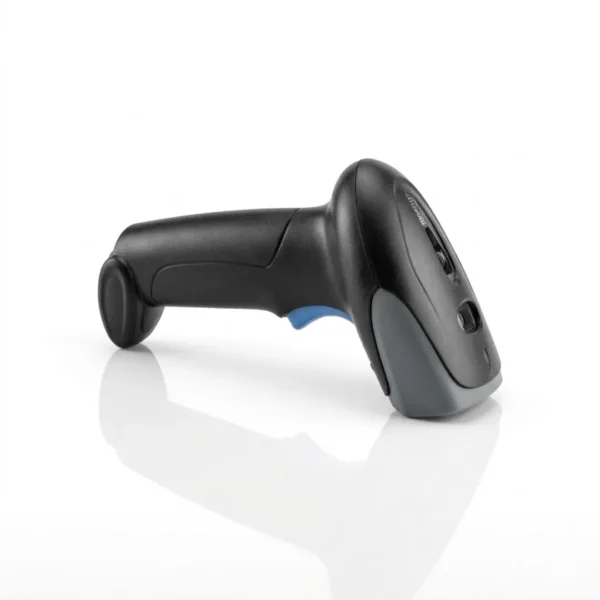

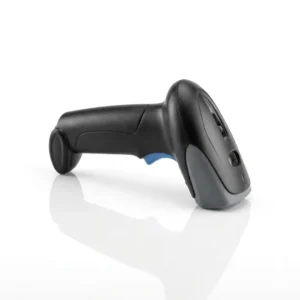

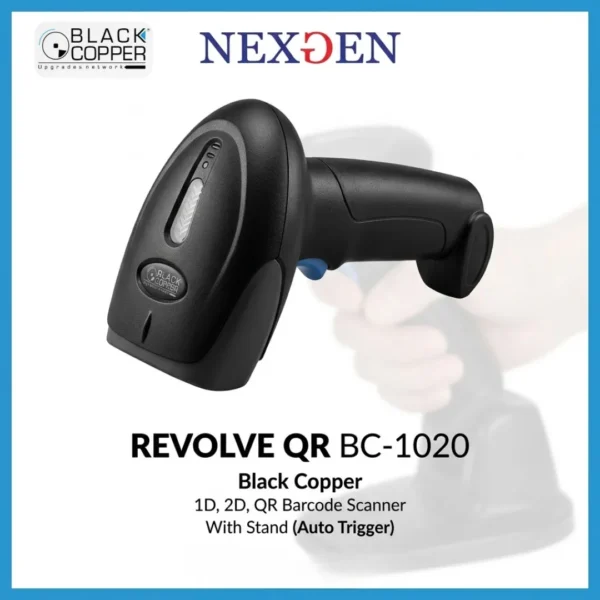

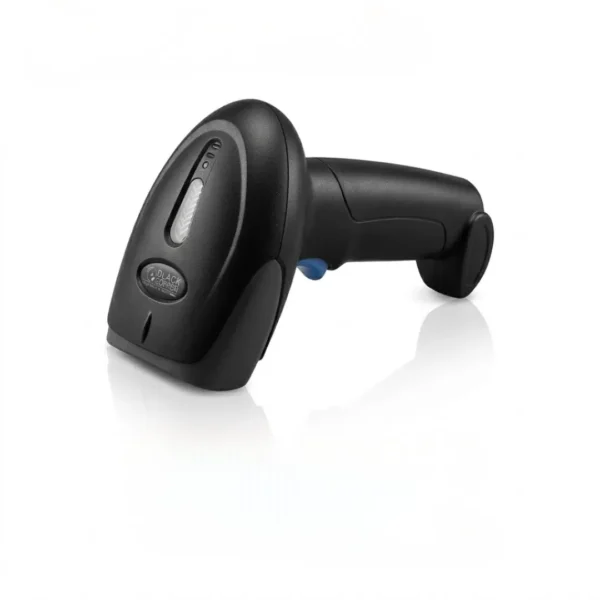

BlackCopper BC-1020 Revolve QR Barcode Scanner
₨8899.00
-
Fast QR Barcode Scanner Performance
-
High-Resolution CMOS Sensor Array
-
Auto-Trigger Hands-Free Scanning Mode
-
Rugged 1.2m Drop Resistance Build
- Description
- Reviews (0)
Description
BlackCopper BC-1020 Revolve QR Barcode Scanner | High-Speed 2D CMOS Desktop Reader
In the fast-moving world of retail and logistics, having a reliable QR Barcode Scanner can make the difference between a bottleneck and a smooth checkout. The BlackCopper BC-1020 Revolve is a professional-grade imaging solution designed to read 1D, 2D, and QR codes with lightning speed. Built with a high-resolution 648×488 CMOS sensor, this device excels at capturing digital codes from smartphone screens just as easily as it reads printed labels on curved or uneven packaging. Its “Revolve” design is not just about looks; it offers the ergonomic flexibility needed for long shifts, ensuring comfort for the operator.
Performance meets versatility with the BC-1020. This QR Barcode Scanner features an advanced auto-trigger mode, allowing for hands-free operation that speeds up high-volume scanning tasks. Whether you are dealing with UPC codes in a retail shop or complex Data Matrix codes in a medical facility, the white LED light source and red bar AIM light ensure accurate targeting every time. Unlike cheaper alternatives, this QR Barcode Scanner is built to last, boasting a mechanical shock resistance that survives drops of up to 1.2 meters onto concrete.
Integration is effortless thanks to its multi-interface support, including USB HID and VCP. This ensures that the QR Barcode Scanner is fully compatible with Windows, Mac, Linux, and even mobile operating systems like Android and iOS. For businesses looking to modernize their point-of-sale system, the BC-1020 offers a smooth, fluid scanning experience that requires no complex installation. Simply plug it in, and your team is ready to process transactions with industrial-level precision and speed.
Technical Specifications
| Interface | USB HID KEYBOARD/ USB VCP |
| Voltage requirement | DC 5V±10% |
| Current consumption | Max:120mA |
| Light source | White LED*1 |
| AIM light source | Red Bar LED |
| Photo sensor | CMOS array sensor |
| Sensor Resolution | 648×488 pixels |
| Decode angle | Pitch angle: ±55°Skew angle: ±55°
Tilt angle: ±180° |
| Min resolution | 1D:5mil( 0.127mm) |
| Min .PCS value | >30%UPC/EAN 13(13mil) |
| Field of View | 20°(H), 21° (V) |
| Compatibility | Win OS / Mac OS/ LinuxAndroid/IOS/Embedded OS |
| Mechanical Shock | 1.2m drop onto concrete surface |
| Temp | -20° to 60°C / -4° to 140°F(operation)-40° to 80°C /-40° to176°F(storage) |
| Humidity | 5 – 95% (operation) 5 – 95% (storage) |
| Ambient Light | Fluorescent light: 4000 lx maxDirect sun light: 80,000 lx max
White light: 4000 lx max |
| Decode Capability | 1D : UPC/EAN, Code 128, Code 39,Code 93, Code 11, Matrix 2 of 5,
Interleaved 2 of 5, Codabar, MSI, GS1 Databar 2D : QR ,PDF417 ,Data Matrix |
| Environmental | RoHS |
| Dimensions | 97mm x 67mm x 165mm(L*W*H) |
| Weight | 122.8g |
