Description

Overview

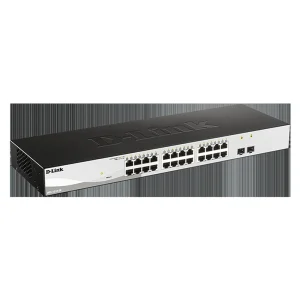

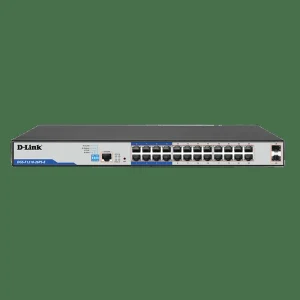

The D-Link DGS-F1210-26PS is a 26-port Gigabit Smart Managed PoE+ switch built for businesses that need power and data on one cable: 24× 10/100/1000BASE-T PoE+ ports with a 230W PoE budget, plus 2× SFP uplink slots for fiber or high-speed copper uplinks to the core network.

Power over Ethernet is what makes this switch earn its place. IP cameras, VoIP phones, and wireless access points all draw power straight from the network cable — no electrician, no power adapters at every endpoint, no UPS at every desk. With 802.3at PoE+ (up to 30W per port) and a 230W total budget, the DGS-F1210-26PS comfortably powers a full office of cameras, phones, and APs from a single 1U rack unit.

As a Smart Managed switch, it sits between unmanaged plug-and-play and full L2+ managed complexity: VLANs, QoS, link aggregation, and D-Link’s intuitive web management — enough control for real networks without a CCNA to run it. For anyone comparing PoE switches in Pakistan, this D-Link PoE switch is the workhorse choice for offices, schools, retail, and surveillance deployments.

Key Benefits

• 24× PoE+ ports, 230W budget: power cameras, phones, and APs over the network cable.
• 2× SFP uplinks: fiber or copper uplinks keep the backbone uncongested.
• Smart Managed: VLANs, QoS, and LACP without full-managed complexity.
• 52 Gbps switching capacity: full wire-speed Gigabit on every port.
• D-Link Green: port power-down, cable-length power adjustment, and fanless-quiet efficiency features.
• Surveillance-ready: Auto Surveillance VLAN and ONVIF-friendly QoS for IP camera deployments.

Detailed Features

PoE+ That Simplifies Installations

Every one of the 24 copper ports supports 802.3af/at PoE+, delivering up to 30W per port within the 230W budget. That means a 16-camera surveillance install needs just network cabling — no mains power at each camera location. The switch’s PoE management lets you prioritize ports, schedule PoE, and monitor consumption per port.

Smart Management, Zero Headaches

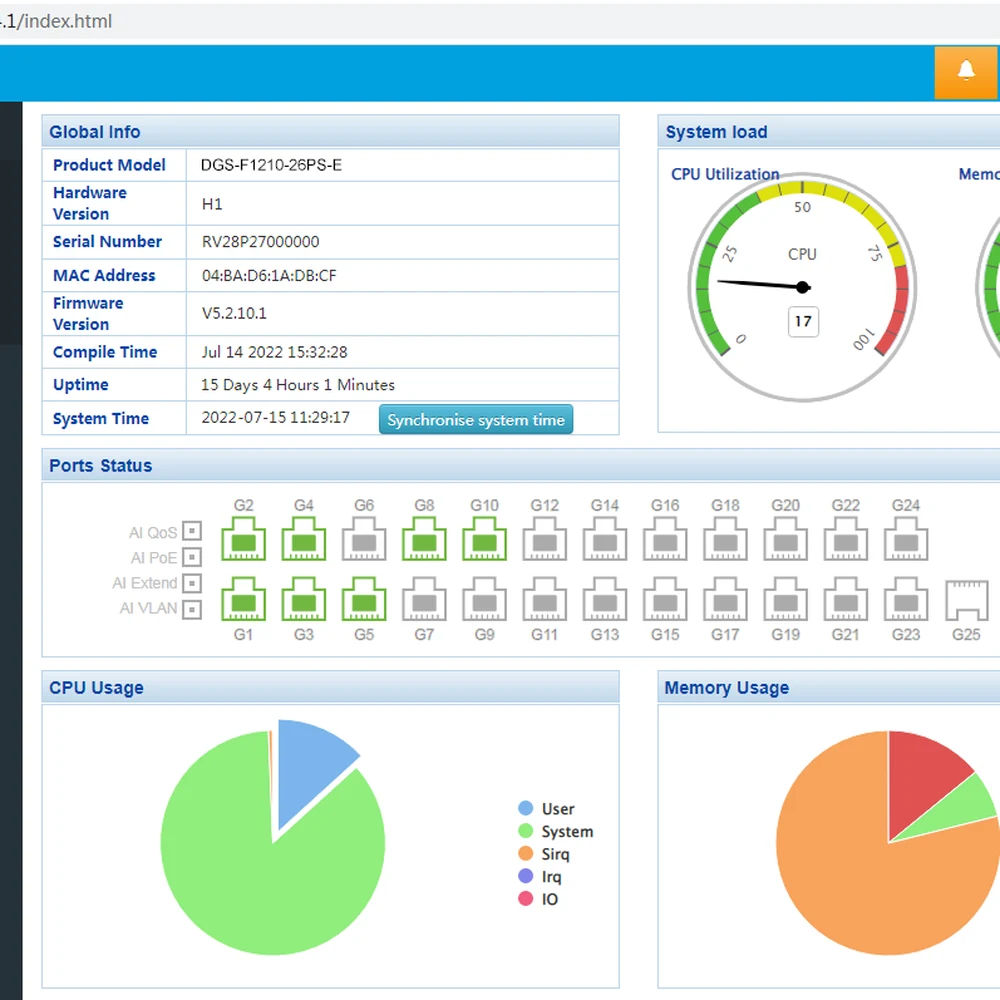

The web-based D-Link Network Assistant and built-in GUI handle VLAN segmentation (keep guests off the office LAN), 802.1p QoS (prioritize voice and video), static link aggregation for fatter uplinks, and IGMP snooping for multicast video. Loopback detection and cable diagnostics catch wiring mistakes before they become outages.

Built for the Rack

Standard 19-inch 1U rack-mount metal chassis, 52 Gbps switching fabric for non-blocking Gigabit throughput, and D-Link Green power-saving that adjusts per-port power by link status and cable length. The two SFP slots accept fiber modules for long runs to other buildings or floors — essential for campus and multi-floor deployments.

PoE Budget Planning Made Simple

The most common PoE mistake is ignoring the total budget. Here’s the quick math for this switch: 230W ÷ your devices. Sixteen 8W cameras = 128W — comfortable. Add four 15W access points (60W) and you’re at 188W — still headroom. The switch’s per-port PoE monitoring shows live consumption, so you can verify rather than guess. And PoE scheduling powers down non-essential ports overnight — ports feeding lobby APs can sleep while the cameras stay awake.

Technical Specifications

Specification	Details
Model	D-Link DGS-F1210-26PS
Port Count	24× 10/100/1000BASE-T PoE+ + 2× SFP (26 ports total)
PoE Standard	IEEE 802.3af / 802.3at (PoE+), up to 30W per port
PoE Power Budget	230W (official D-Link specification)
Switching Capacity	52 Gbps (non-blocking for 26 Gigabit ports)
Management	Smart Managed – web GUI, D-Link Network Assistant (DNA), SNMP
Key Features	VLAN, 802.1p QoS, Auto Surveillance VLAN, link aggregation, IGMP snooping, loopback detection, cable diagnostics, Long Reach PoE (250 m on 8 ports), 6 kV surge protection, D-Link Green
MAC Address Table	16K entries
Form Factor	19″ 1U rack-mount, metal chassis
Ideal For	Offices, IP surveillance, VoIP deployments, schools, retail chains

Ideal Users

• Offices (20–50 users): one switch for data + VoIP phones + APs.
• Surveillance installers: 24 PoE+ ports purpose-built for IP camera rollouts — pair with our NVR range.
• Schools & campuses: VLANs separate staff, students, and guests; SFP uplinks tie buildings together.
• Retail chains: PoS, cameras, and APs on one managed, monitorable switch.
• IT resellers: the standard-spec PoE+ switch clients ask for by name.
• New office setups: one switch instead of separate data switch + PoE injectors + power adapters — cleaner racks, fewer failure points.

What’s in the Box

• D-Link DGS-F1210-26PS Smart Managed PoE+ Switch
• Rack-mount kit
• Power cord
• Quick installation guide

FAQs

Q: What’s the real PoE budget — 230W or 250W?
A: D-Link’s official specification is 230W. Some reseller listings round it to 250W, but plan your camera/AP load against 230W to be safe.

Q: How many PoE cameras can it power?
A: Typical IP cameras draw 5–12W each — at that draw, all 24 ports can run cameras simultaneously within the 230W budget. PTZ cameras (up to 30W) need per-port planning.

Q: Does it need a license or subscription?
A: No — Smart Managed switches have no cloud license fees. Manage via web GUI or D-Link Network Assistant.

Q: Can the SFP ports take fiber modules?
A: Yes — standard SFP slots accept 1G fiber or copper SFP modules (modules sold separately).

Q: Is it noisy for an office?
A: It’s a rack switch with cooling fans — fine in a rack cabinet or comms room; not designed for silent desktop placement.

Q: Do you offer deployment support?
A: Message us on Facebook or Instagram — we can advise on PoE budgeting and VLAN setup for your project.

Q: Smart Managed vs fully managed — what’s the difference?
A: Smart Managed covers the features most SMB networks actually use — VLANs, QoS, link aggregation, port mirroring — through a simple web interface. Fully managed (L2+/L3) adds CLI, stacking, and advanced routing most small networks never touch. Unless you’re running a large enterprise core, Smart Managed saves money and complexity.
