Description

High-Impact Classroom Visuals with Ultra-Short-Throw Precision

The Epson EB-685W is an industry-leading School College Projector engineered specifically for modern educational institutions, seminar halls, and collaborative corporate meeting rooms. Featuring an advanced ultra-short-throw design, this WXGA display engine projects large, vivid images up to 100 inches from just inches away from the wall or screen. By mounting directly above the projection surface, presenter shadows and blinding glare are virtually eliminated, allowing instructors and speakers to move naturally in front of their audience without disrupting presentation flow.

Equipped with Epson’s 3LCD technology, 3,500 lumens of equal white and color light output, and a sharp 14,000:1 contrast ratio, this high-performance School College Projector produces clear, true-to-life visuals even in well-lit rooms.

Key Benefits of School College Projector

• Shadow-Free Close-Range Projection: Ultra-short throw ratio (0.28–0.37:1) lets you project massive 100-inch widescreen displays from a distance of just 0.6 meters.

• 3,500 Lumens Equal Color & White Brightness: Advanced 3LCD technology ensures crisp text and bright colors without rainbow effects, even in fully lit classrooms.

• Extended Lamp Lifespan: Operates up to 10,000 hours in Eco Mode, drastically reducing maintenance downtime and lamp replacement costs over time.

• Multi-Device Connectivity & Split-Screen: Connect up to three HDMI sources simultaneously, or split the screen to show two distinct input feeds side-by-side.

• Built-In High-Output Audio: Includes a powerful integrated 16W speaker that fills medium to large classrooms without requiring external sound equipment.

Features and Advantages of School College Projector

Superior 3LCD Image Quality

Unlike single-DLP projectors that can suffer from color breakup or distracting rainbow artifacts, Epson’s 3LCD 3-chip technology displays equal levels of White Light Output and Color Light Output (3,500 Lumens). This ensures rich, accurate colors across educational videos, complex schematics, and presentation slides.

Seamless Screen Mirroring and Moderation

By adding an optional wireless LAN unit, educators and meeting leaders can use the Epson iProjection app to share content wirelessly from laptops, tablets, and smartphones. Built-in moderator controls allow teachers to review and manage up to 50 connected student devices before casting content on screen.

Versatile Installation & Easy Maintenance

With vertical and horizontal manual keystone correction ($\pm3^\circ$) and quick corner adjustments, setup on wall mounts is straightforward. A top-loading lamp design means replacements can be performed quickly without dismounting the unit from the wall.

Technical Specifications of School College Projector

Feature	Specification
Model Name	Epson EB-685W
Projection System	3LCD Technology (0.59-inch with D9)
Native Resolution	WXGA HD-Ready (1280 × 800), 16:10 Aspect Ratio
Color & White Light Output	3,500 Lumens (2,900 Lumens in Eco Mode)
Contrast Ratio	14,000:1
Throw Ratio	0.28 – 0.37:1 (Ultra-Short-Throw)
Screen Size Capacity	60 Inches to 100 Inches
Projection Distance	0.4 m (for 60″ display) to 0.6 m (for 100″ display)
Lamp Life Durability	5,000 Hours (Normal), 10,000 Hours (Eco Mode)
Keystone Correction	Manual Vertical: $\pm3^\circ$, Manual Horizontal: $\pm3^\circ$

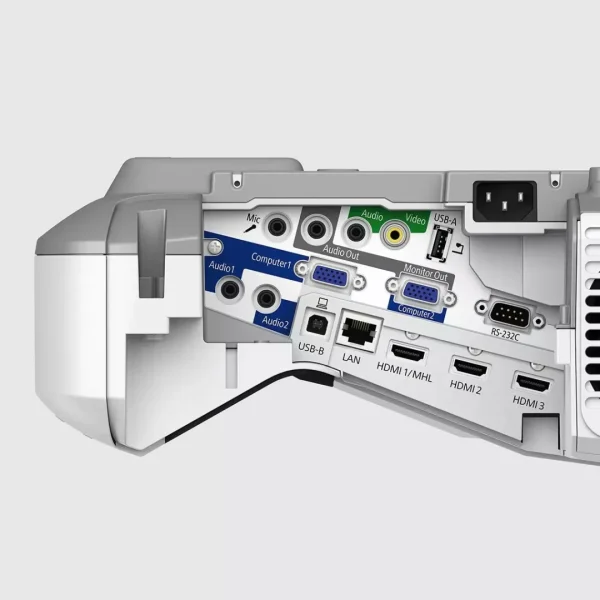

Input Connections	3 × HDMI, 2 × VGA In, 1 × VGA Out, 1 × Composite, USB 2.0-A, USB 2.0-B, RS-232C, RJ45 LAN
Audio Interface	3 × Audio In (3.5mm Jack), 1 × Audio Out, 1 × Mic Input, Integrated 16W Speaker
Wireless Support	Optional (via IEEE 802.11b/g/n Wireless LAN Adapter)
Power Consumption	301W (Normal On), 258W (Eco On), < 0.37W (Standby)
Dimensions & Weight	367 × 400 × 149 mm / 5.7 kg
Noise Level	35 dB (Normal), 30 dB (Economy), 29 dB (Eco2)
Official Warranty	5-Year / 8,000-Hour Carry-In Warranty (Lamp: 5-Year / 1,000-Hour)

Ideal Users of School College Projector

• Schools, Colleges, and Universities: Ideal for interactive teaching where instructors require large, readable screen projections without blocking the light beam.

• Corporate Training Facilities: Perfect for meeting rooms and executive boardrooms requiring split-screen data analysis and multi-device inputs.

• Educational Advisory Units: Great tool for presenting educational software, demonstrating academic tools, or showing institutional data setups to large student gatherings.

Frequently Asked Questions (FAQs)

Q: What makes this the best School College Projector for classrooms?

A: Its ultra-short-throw design allows mounting directly above the screen (just 0.4 to 0.6 meters away), which prevents instructors from casting shadows over projected slides or experiencing harsh light glare in their eyes.

Q: Can this projector display content wirelessly from phones or laptops?

A: Yes, with the addition of an optional Epson Wireless LAN module, users can cast content wirelessly from iOS, Android, Windows, Mac, and Chromebook devices using the free Epson iProjection application.

Q: Does the Epson EB-685W require external speakers?

A: In most standard classrooms and lecture halls, external speakers are unnecessary because the projector includes a clear, high-output 16W built-in speaker along with a dedicated microphone input.

Q: How long will the projector lamp last before needing replacement?

A: The high-efficiency 250W lamp is rated to last up to 5,000 hours under standard operation, and up to 10,000 hours when operated in Eco Mode.
