Description

Overview

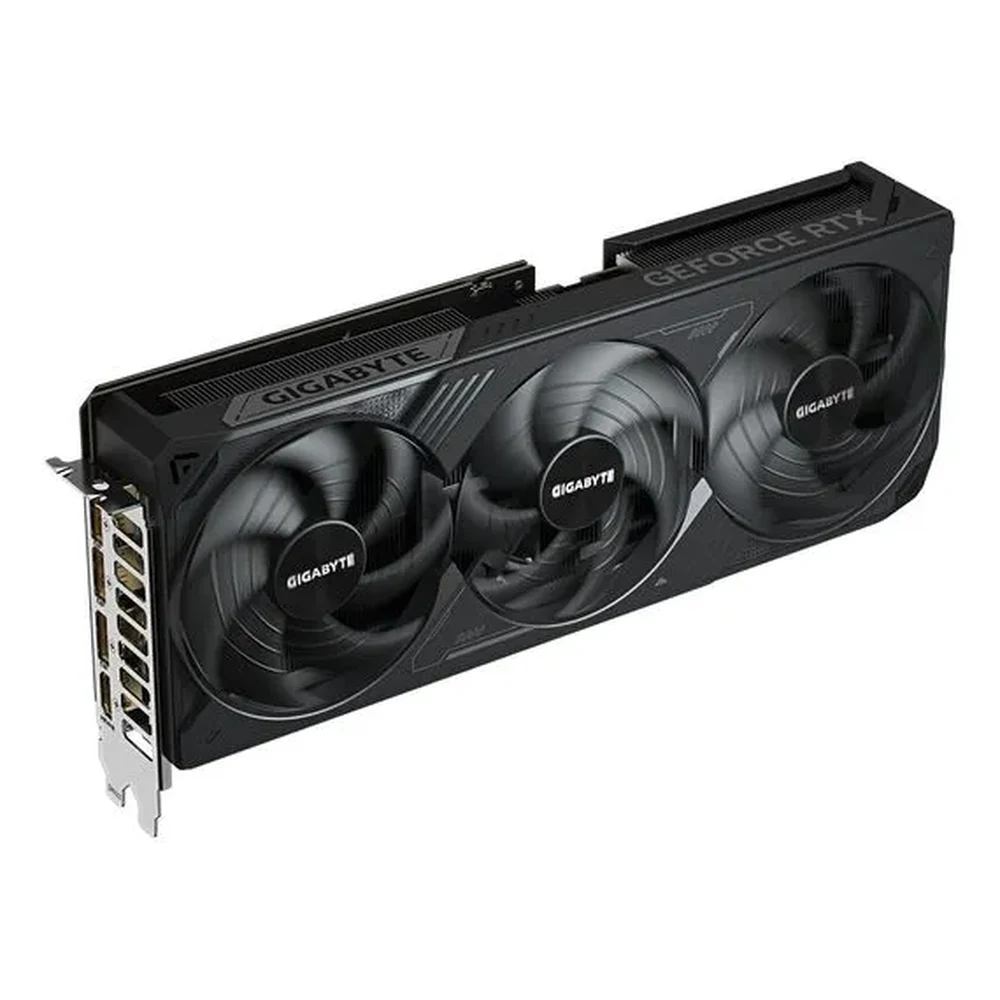

The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB (GV-N5080WF3OC-16GD) brings NVIDIA’s Blackwell architecture to compact, high-performance builds. With 10,752 CUDA cores, 16GB of ultra-fast GDDR7 memory, and a factory overclock of 2670 MHz, this SFF-Ready graphics card delivers flagship-tier gaming, ray tracing, AI, and creative performance in a 2.5-slot design that fits smaller cases.

Gigabyte’s WINDFORCE 3X cooling — Hawk fans with alternate spinning, server-grade thermal conductive gel, a large vapor chamber, and composite copper heat pipes — keeps the GPU, VRAM, and MOSFETs cool under sustained loads, while Dual BIOS lets you switch between Performance and Silent modes. Whether you are building a compact powerhouse or upgrading a full tower, the RTX 5080 class is the sweet spot for 4K gaming and AI workloads in Pakistan.

Compared with the previous generation, Blackwell brings meaningful efficiency and AI gains: fifth-generation Tensor cores with FP4 precision dramatically accelerate AI inference, fourth-generation RT cores handle heavier ray-traced scenes, and DLSS 4’s Multi Frame Generation can multiply frame rates several times over in supported games. For anyone who games at 1440p high-refresh or 4K, or who runs creative and AI workloads alongside gaming, this card removes the GPU as the bottleneck for years to come.

Key Benefits

• NVIDIA Blackwell architecture: 5th-gen Tensor cores with FP4, 4th-gen Ray Tracing cores, and DLSS 4 with Multi Frame Generation for massive AI-driven frame boosts.
• 16GB GDDR7 memory: 256-bit bus at 30 Gbps (~960 GB/s bandwidth) — ready for 4K ultra settings, AI models, and heavy creative timelines.
• Factory overclocked: 2670 MHz boost clock out of the box (vs 2617 MHz reference) with Dual BIOS for Performance/Silent switching.
• SFF-Ready 2.5-slot design: 304 × 126 × 50 mm with reinforced structure and versatile VGA holder — fits compact performance builds.
• WINDFORCE 3X cooling: Hawk fans, vapor chamber, and server-grade thermal gel keep thermals and noise in check.
• Creator-ready: NVIDIA Studio drivers, 9th-gen NVENC encoder, and Broadcast AI effects for streamers and editors.

Detailed Features

Blackwell Gaming Power

DLSS 4 with Multi Frame Generation multiplies frame rates in supported titles, while NVIDIA Reflex 2 with Frame Warp cuts latency for competitive play. Fourth-generation RT cores deliver full ray tracing with neural rendering, and fifth-generation Tensor cores accelerate AI tasks from local LLMs to image generation.

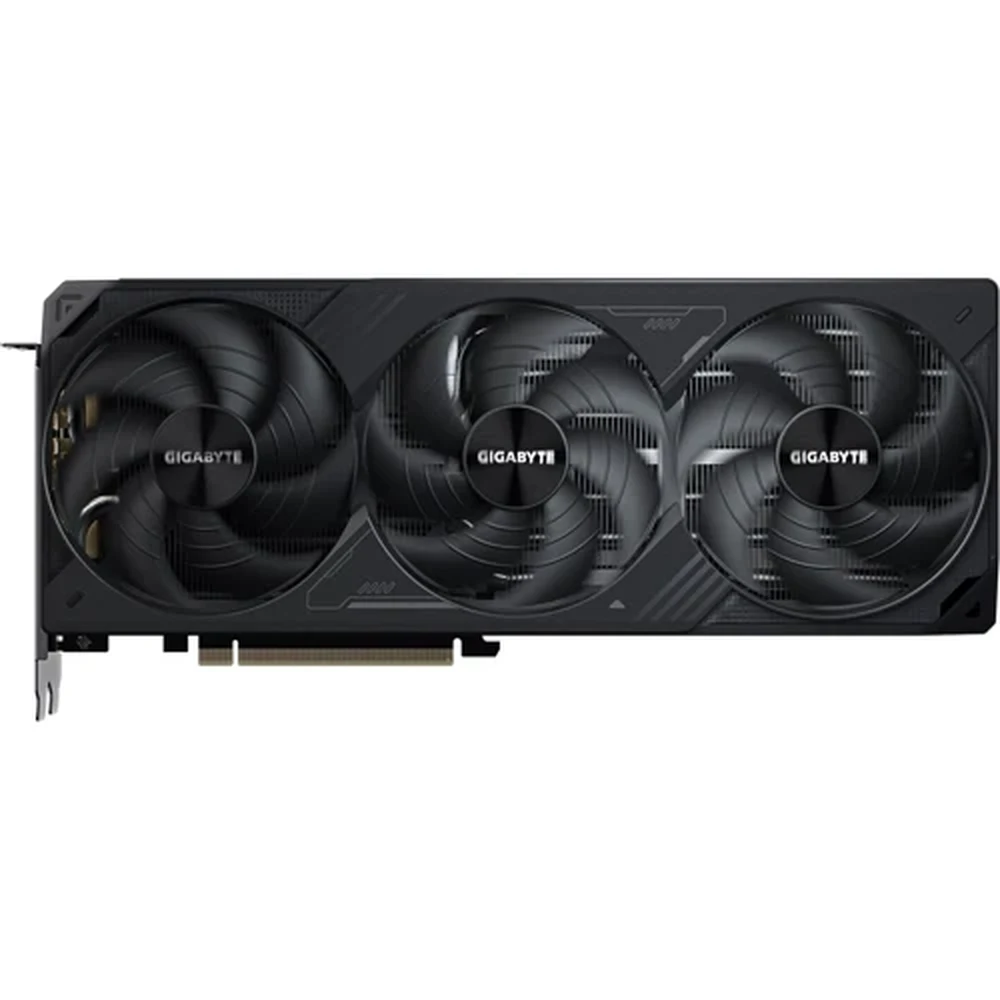

WINDFORCE 3X Thermal Design

Three Hawk fans with alternate spinning reduce turbulence, while a large vapor chamber and composite copper heat pipes pull heat directly off the GPU. Server-grade thermal conductive gel covers the VRAM and MOSFETs, graphene nano lubricant extends fan life, and 3D Active Fan keeps the card silent at idle.

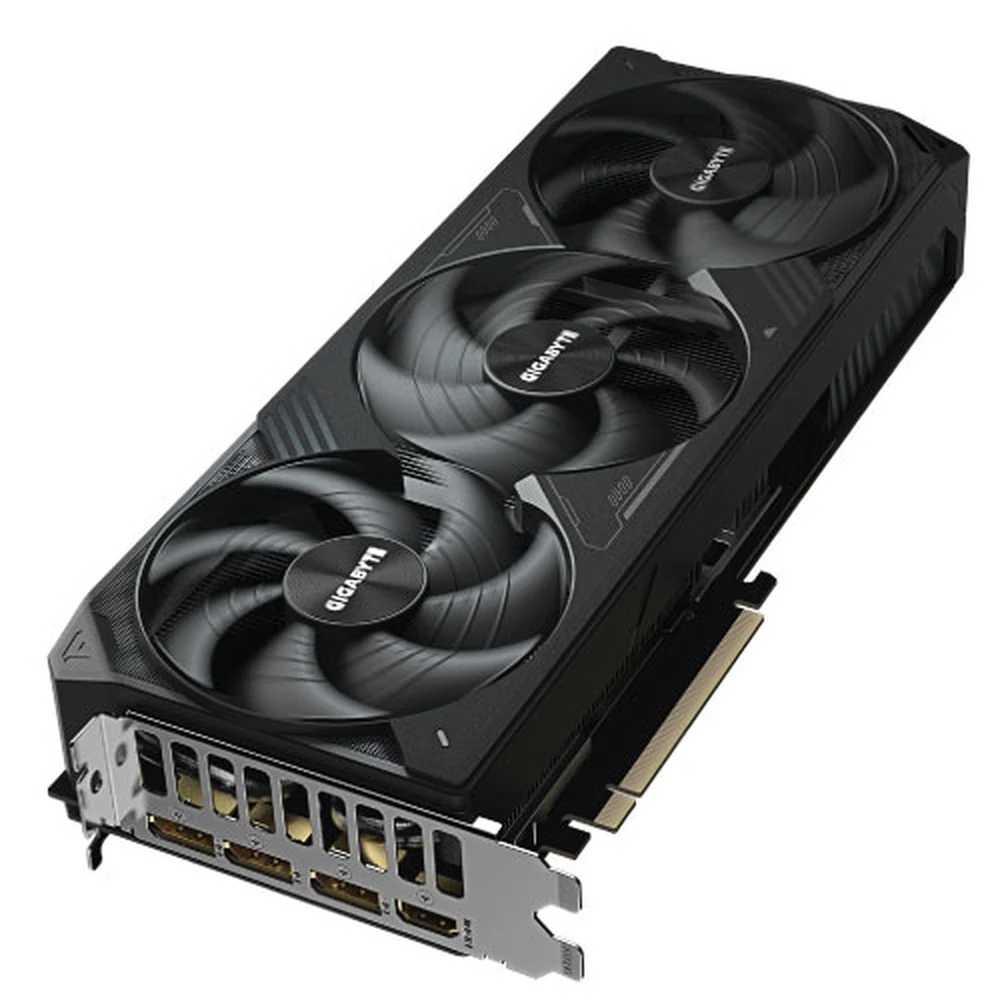

Built for Compact Builds

NVIDIA SFF-Ready certification, a reinforced structure to prevent PCB sag, and the included versatile VGA holder make this card ideal for small-form-factor rigs that refuse to compromise. A single 16-pin (12V-2×6) connector with the included adapter keeps cabling clean.

Connectivity for Modern Setups

Three DisplayPort 2.1b outputs and one HDMI 2.1b drive up to four displays at resolutions as high as 7680×4320, with HDCP 2.3 support for protected content. PCI Express 5.0 x16 ensures full bandwidth on current platforms, and the card is equally at home in a workstation running creative suites or a battlestation running the latest competitive shooters.

Technical Specifications

Specification	Details
Model	Gigabyte GV-N5080WF3OC-16GD – GeForce RTX 5080 WINDFORCE OC SFF 16G
GPU Architecture	NVIDIA Blackwell – GeForce RTX 5080
CUDA Cores	10,752
Core Clock	2670 MHz (Reference: 2617 MHz)
Memory	16GB GDDR7, 256-bit, 30 Gbps
Bus Interface	PCI Express 5.0 x16
Outputs	3× DisplayPort 2.1b, 1× HDMI 2.1b; up to 4 displays; max 7680×4320
Power Connector	1× 16-pin (12V-2×6); adapter to 3× PCIe 8-pin included
Recommended PSU	850W
Dimensions	304 × 126 × 50 mm; 2.5-slot; NVIDIA SFF-Ready
Cooling	WINDFORCE 3X: Hawk fans, vapor chamber, thermal gel; Dual BIOS
Key Technologies	DLSS 4, Reflex 2, NVIDIA Studio, 9th-gen NVENC, G-SYNC, DirectX 12, OpenGL 4.6

Ideal Users

• 4K gamers: maxed-out settings with DLSS 4 frame generation in the latest AAA titles.
• SFF builders: flagship power in a 2.5-slot, SFF-Ready footprint.
• Creators & streamers: 16GB VRAM, Studio drivers, and 9th-gen NVENC for editing and streaming.
• AI enthusiasts: run local LLMs and image models on 16GB GDDR7 with FP4 Tensor acceleration.
• Upgraders: compare with the RTX 5070 range if you want strong 1440p value instead.

What’s in the Box

• Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB graphics card
• 12V-2×6 to 3× PCIe 8-pin power adapter
• Versatile VGA holder + holder manual
• VGA manual / quick guide

FAQs

Q: Is the RTX 5080 good for 4K gaming?
A: Yes — with DLSS 4 Multi Frame Generation, the RTX 5080 handles 4K ultra settings comfortably in modern titles, and 16GB GDDR7 gives plenty of headroom.

Q: What PSU do I need?
A: NVIDIA and Gigabyte recommend an 850W power supply with a native 16-pin (12V-2×6) connector or the included adapter.

Q: Will it fit in a small case?
A: It’s NVIDIA SFF-Ready at 304 × 126 × 50 mm (2.5 slots) — check your case’s GPU clearance, but it’s designed for compact performance builds.

Q: What’s the difference between this and the ASUS Prime RTX 5080?
A: Same RTX 5080 GPU; the Gigabyte WINDFORCE focuses on triple-fan cooling and SFF-Ready compactness, while the ASUS Prime RTX 5080 uses Axial-tech fans with a vapor chamber. Both are excellent — pick by price, looks, and availability.

Q: Does it support DLSS 4?
A: Yes — full DLSS 4 with Multi Frame Generation, Reflex 2, and the latest NVIDIA Studio/Broadcast features.

Q: Is this card new and genuine?
A: Yes — brand new, factory sealed, sourced through official channels with local warranty support from NexGenShop’s GPU range.

Q: Does it work for video editing and 3D rendering?
A: Absolutely. The 16GB GDDR7 frame buffer, NVIDIA Studio drivers, and 9th-gen NVENC encoder make the RTX 5080 excellent for Premiere Pro, DaVinci Resolve, Blender, and similar workloads — it’s a creator card as much as a gaming card.
