Description

Fast and Intelligent Level 2 Electric Vehicle Charging at Home

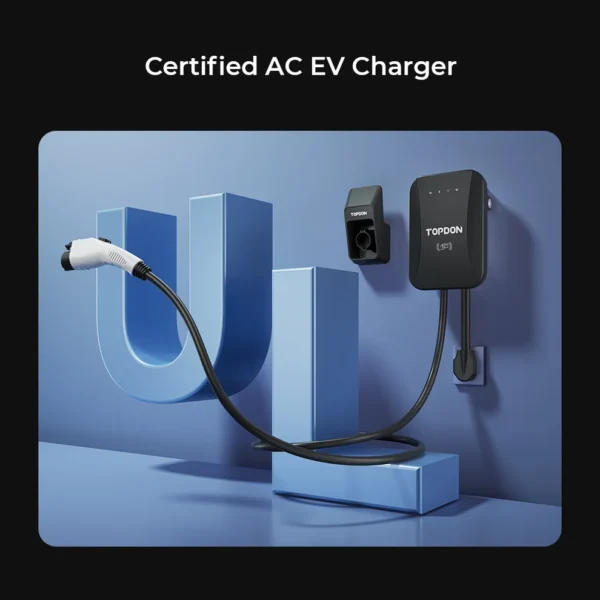

Power up your electric vehicle effortlessly with next-generation smart charging technology. The TOPDON  ev car charger Pulse Q Smart Level 2 Charging Station delivers up to 7 kW of clean AC power at 32 Amps, making daily battery replenishment up to 3 times faster than standard Level 1 wall-plug tricklers. Equipped with a universal IEC 62196-2 Type 2 connector and connected via Wi-Fi, this compact wallbox unit combines remote smartphone app control with flexible RFID keycard access for home garages and private commercial parking spaces.

Key Benefits

Faster 7kW Charging Power Output

Operating on 230V AC single-phase supply with adjustable amperage from 6A to 32A, the TOPDON Pulse Q delivers robust 7 kW charging speeds. It significantly reduces vehicle downtime, allowing you to top up overnight during off-peak power hours or between daily business errands.

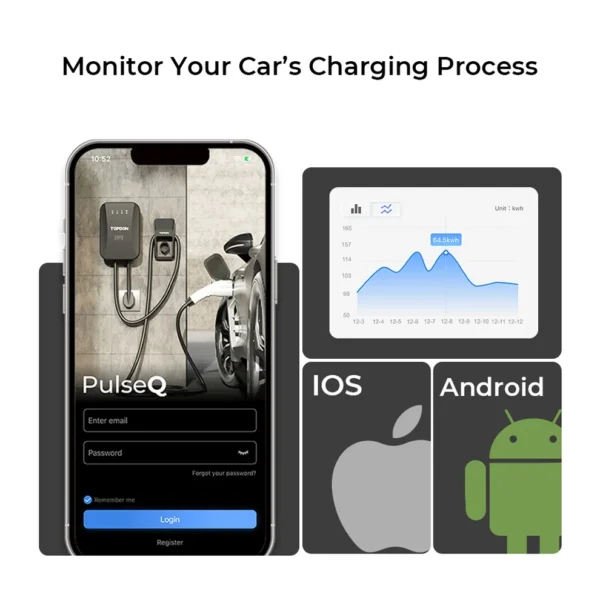

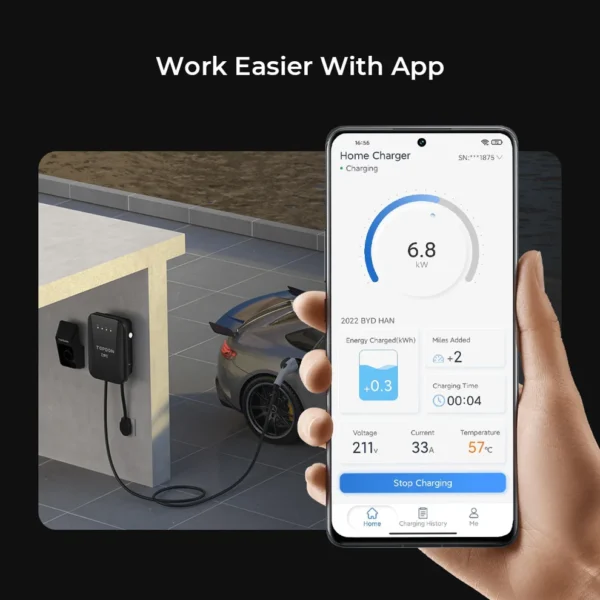

Smart App & RFID Dual Access Control

Take full control over every charging session. Use the dedicated PulseQ mobile application over Wi-Fi to schedule off-peak charging times, adjust operating current precision down to 1A increments, monitor electricity consumption, and track mileage added. Alternatively, authorize charging locally using the included contactless RFID swipe cards or set the unit to automatic Plug-and-Play mode.

Universal European Type 2 Compatibility

Equipped with an IEC 62196-2 Type 2 connector plug, the Pulse Q seamlessly supports European-spec electric vehicles and plug-in hybrid electric vehicles (PHEVs). It offers native compatibility with popular EV brands across Pakistan—including Audi e-tron, Porsche Taycan, MG ZS EV, MG 4, BYD, BMW i4, Mercedes-EQ, and Tesla (via Type 2 adapter).

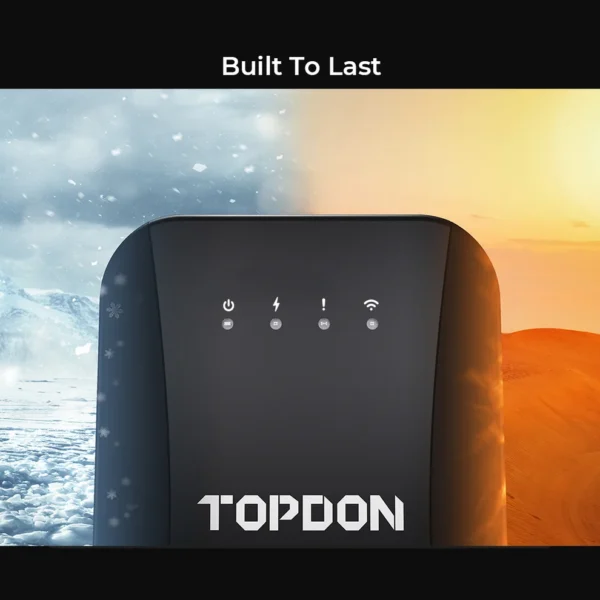

Rugged IP65 Weatherproof and IK10 Impact Build

Built to withstand harsh environmental conditions, the flame-retardant PC + ASA outer casing carries an IP65 rating against dust and low-pressure water jets, alongside IK10 high-impact protection. It operates reliably across extreme temperatures ranging from -30°C to 55°C, making outdoor carport or wall installations completely safe year-round.

Features and Advantages

Multi-Layer Electronic Circuit Safeguards

Engineered with comprehensive hardware protections including Over Voltage, Under Voltage, Overload, Short Circuit, Earth Leakage (CCID 20), Lightning Protection, and real-time internal temperature monitoring to guard both your building wiring and vehicle battery.

Flexible 5-Meter Heavy-Duty Charging Cable

Includes a durable 16.4 ft (5m) copper cable wrapped in premium PVC, designed to stay pliable in cold weather and handle up to 32A continuous load without overheating. When idle, the cable coils neatly around the integrated wall holster dock.

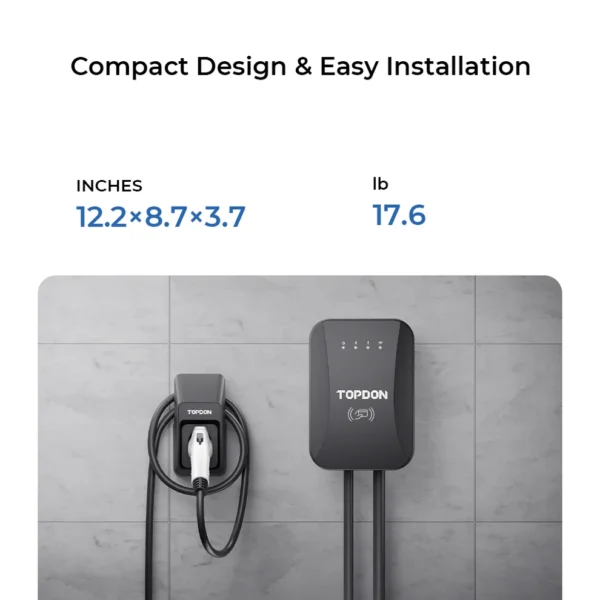

Compact Wall and Pedestal Mounting

Featuring clean, space-saving aesthetics with front status LED indicators (Standby, Charging, Fault, Network), the unit can be mounted on garage walls or fixed pedestals in minutes.

Technical Specifications

Specification	Details
Model	TOPDON Pulse Q 7kW (EU Type 2)
Charging Type	Level 2 AC Fast Charging
Maximum Output Power	7 kW (7,000 Watts)
Input / Output Voltage	230V AC Single Phase (50/60Hz)
Adjustable Current	6A to 32A (Precision adjustment)
Connector Type	IEC 62196-2 Type 2 Plug
Cable Length	16.4 Feet / 5 Meters (Heavy-duty copper/PVC)
Operation Modes	App Control (Wi-Fi), RFID Cards, Plug-and-Play
Protection Ratings	IP65 Weatherproof | IK10 Impact Resistant
Operating Temperature	-30°C to 55°C (-22°F to 131°F)
Enclosure Material	Flame-retardant PC + ASA

Ideal Users

The TOPDON Pulse Q 7kW ev car charger is ideal for:

• EV Owners at Home: Drivers looking for an intelligent, app-controlled Level 2 ev car charger to recharge electric cars overnight rapidly and cost-effectively.

• Multi-EV Households: Families operating multiple electric vehicles where adjustable current and scheduling help balance total household electrical loads.

• Commercial Garages & Offices: Property managers and business owners seeking secure RFID-card access control for employee or guest parking spaces.

Why Buy From NexGenShop.pk

Purchasing your smart EV charging hardware through NexGenShop.pk guarantees authentic quality and total peace of mind:

• 100% Original TOPDON Hardware: Guaranteed authentic equipment backed by official warranty support and original accessories.

• Fast Express Shipping Across Pakistan: Trackable courier delivery serving Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and cities nationwide.

• Complete Smart Ecosystem: Explore complemental smart equipment, chargers, and automotive tech under Printers & Scanners and smart gadgets directly at NexGenShop.pk.

Stay connected with our latest product arrivals on our official NexGenShop Facebook Page and explore modern gadgets on NexGenShop Instagram.

Final Conclusion

The TOPDON Pulse Q 7kW combines high-speed Level 2 AC power, universal European Type 2 compatibility, smart smartphone app scheduling, and IP65 weatherproof durability. Whether you need a secure RFID-enabled charger for your office or a reliable home ev car charger, this unit delivers seamless power every day. Order yours today from NexGenShop.pk to elevate your electric driving experience.
