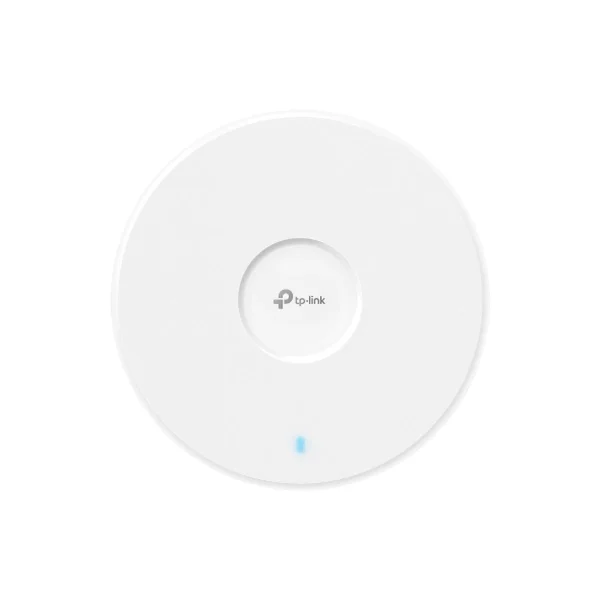

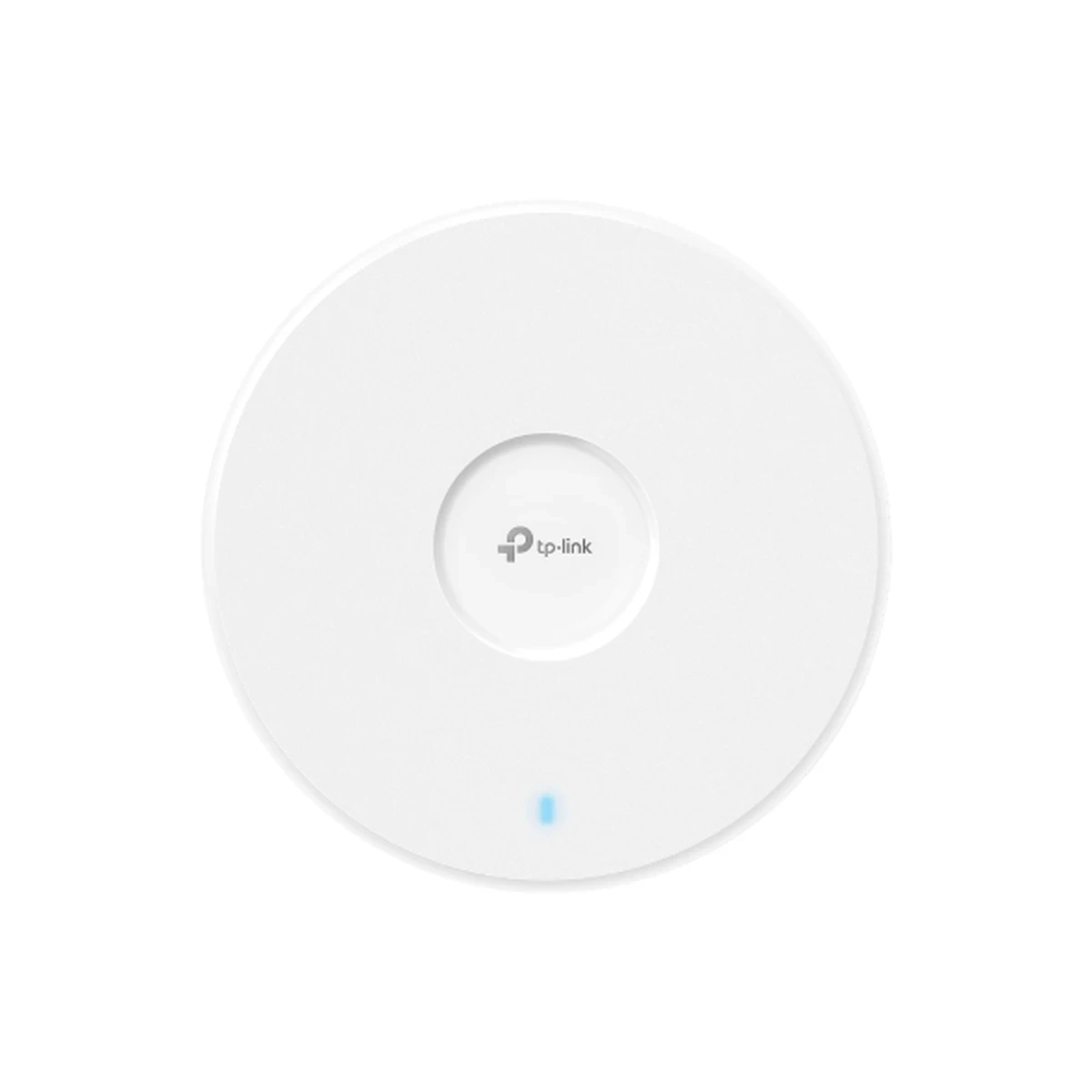

The TP-Link EAP723 BE5000 Wi-Fi 7 Ceiling Access Point brings Wi-Fi 7 to offices, schools, clinics, restaurants and other busy indoor spaces that need fast, reliable wireless for many users at once. As part of TP-Link’s Omada business range, it is designed to be managed centrally, so a whole building’s wireless can be run from one controller. Its headline US specification is BE5000: up to 4324 Mbps on the 5 GHz band plus 688 Mbps on the 2.4 GHz band, delivered over a 2.5 Gigabit Ethernet port that avoids the 1 Gigabit bottleneck found on older access points.

The EAP723 uses 160 MHz channels, 4K-QAM and Multi-RU technology to pack more data into every transmission, while OFDMA and MU-MIMO let it serve several clients in the same time slot rather than making them wait in turn. The result is smoother video calls, faster file transfers and steadier performance in rooms full of laptops, phones and tablets.

Key Benefits

• Wi-Fi 7 speed where it counts: US BE5000 performance with 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
• 2.5 Gigabit uplink: A 2.5GbE port feeds the wireless radios properly, instead of choking them behind a 1 Gigabit cable.
• Built for 250+ clients: Designed for crowded rooms, with load balancing and airtime fairness to keep one heavy user from spoiling the network for everyone else.
• One controller for the whole site: Omada SDN central management, cloud access and the Omada app simplify multi-unit deployments.
• Seamless movement: Omada Mesh and seamless roaming hand devices to the strongest access point automatically.

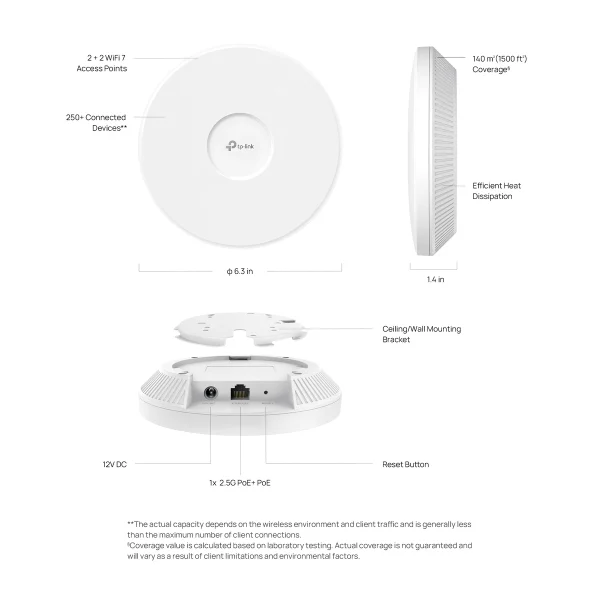

• Discreet ceiling design: A slim white round unit, 160 x 160 x 36.7 mm, with mounting kit included.
• Enterprise-grade security: WPA3, VLAN segmentation, captive portal and rogue AP detection.

Detailed Features of the TP-Link EAP723 BE5000 Wi-Fi 7 Ceiling Access Point

The EAP723 supports 160 MHz-wide channels on 5 GHz — double the width of 80 MHz Wi-Fi 6 — plus 4K-QAM and Multi-RU technology, so fast and slow clients can all be served efficiently. Together with OFDMA and MU-MIMO, this keeps latency low when dozens of devices are active at once.

The wired side is equally important. The EAP723’s single 2.5 Gigabit Ethernet port removes that ceiling. Power arrives over the same cable with 802.3at PoE+, or the unit can run from a 12V/1.5A DC supply. Note carefully: the DC power adapter is not included in the box, so PoE from a compatible switch is the simplest deployment choice, and it also means only one cable needs to reach each ceiling position.

Management is where Omada earns its keep. From an Omada software, hardware or cloud controller, an administrator can adopt new access points, push the same SSIDs and security settings everywhere, and see site-wide statistics. Up to 16 SSIDs allow guest, staff and device traffic to be kept apart with VLANs. Band steering, beamforming and load balancing spread users evenly across access points.

• Wi-Fi 7 (802.11be): 160 MHz channels, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO for high capacity and low latency.
• US BE5000 speeds: 4324 Mbps on 5 GHz plus 688 Mbps on 2.4 GHz; the EU variant is BE3600, so confirm regional stock before ordering.
• 2.5GbE port: One 2.5 Gigabit Ethernet port with 802.3at PoE+ support for power and data over a single cable.
• Internal antennas: 2 x 4 dBi on 2.4 GHz and 2 x 5 dBi on 5 GHz, plus Bluetooth 5.2.
• Omada Mesh and roaming: Wireless mesh links and seamless roaming across the site.
• Security toolset: WPA3/WPA2, VLAN, wireless isolation, access control, MAC filtering and rogue AP detection.
• Flexible mounting: Ceiling, wall or junction-box mounting with the kit included.

For outdoor coverage to pair with this indoor unit, see our EAP225-Outdoor access points, browse the wider access point range, and compare home routers such as the Archer AX73 for single-site needs.

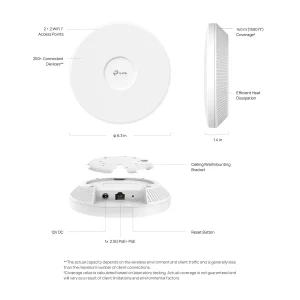

Technical Specifications

Specification	Details
Model	TP-Link EAP723
Wi-Fi Standard	Wi-Fi 7 (IEEE 802.11be), backwards compatible with 802.11ax/ac/n/a/b/g
Wireless Speed (US variant)	BE5000: 4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz
Wireless Speed (EU variant)	BE3600: 2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz — confirm regional stock before ordering
Ethernet Port	1 x 2.5 Gigabit Ethernet port (PoE in)
Power Supply	802.3at PoE+ or 12V/1.5A DC (DC power adapter not included)
Power Consumption	18.6 W (PoE) / 16.0 W (DC)
Antennas	Internal: 2 x 4 dBi (2.4 GHz), 2 x 5 dBi (5 GHz); Bluetooth 1 x 3 dBi (Bluetooth 5.2)
Client Capacity	250+ connected clients
Coverage	Around 140 m² (1500 ft²) per unit, depending on environment
SSIDs	16 SSIDs (8 per band)
Wireless Features	160 MHz channels, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, Mesh, seamless roaming, band steering, beamforming, load balance, airtime fairness
Security	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, captive portal, VLAN, wireless isolation, rogue AP detection, MAC filter (4000 entries)
Management	Omada Software Controller, Omada Hardware Controller, Omada Cloud-Based Controller, Omada app, web-based management, SNMP v1/v2c/v3
Mounting	Ceiling / wall / junction-box mounting (kits included)
Dimensions	160 x 160 x 36.7 mm

Ideal Users

• Offices and co-working spaces: One controller, many rooms, capacity for a full floor of devices.
• Schools and colleges: Classroom coverage with separate SSIDs and VLANs for students, staff and guests.
• Clinics and restaurants: Discreet ceiling Wi-Fi with a captive portal for visitors.
• Hotels and guest houses: Room-to-room roaming and central management across floors.
• System integrators and IT installers: A current Wi-Fi 7 Omada unit that scales by adding more units.
• Businesses upgrading from Wi-Fi 5/6: A clear step up in capacity and uplink speed.

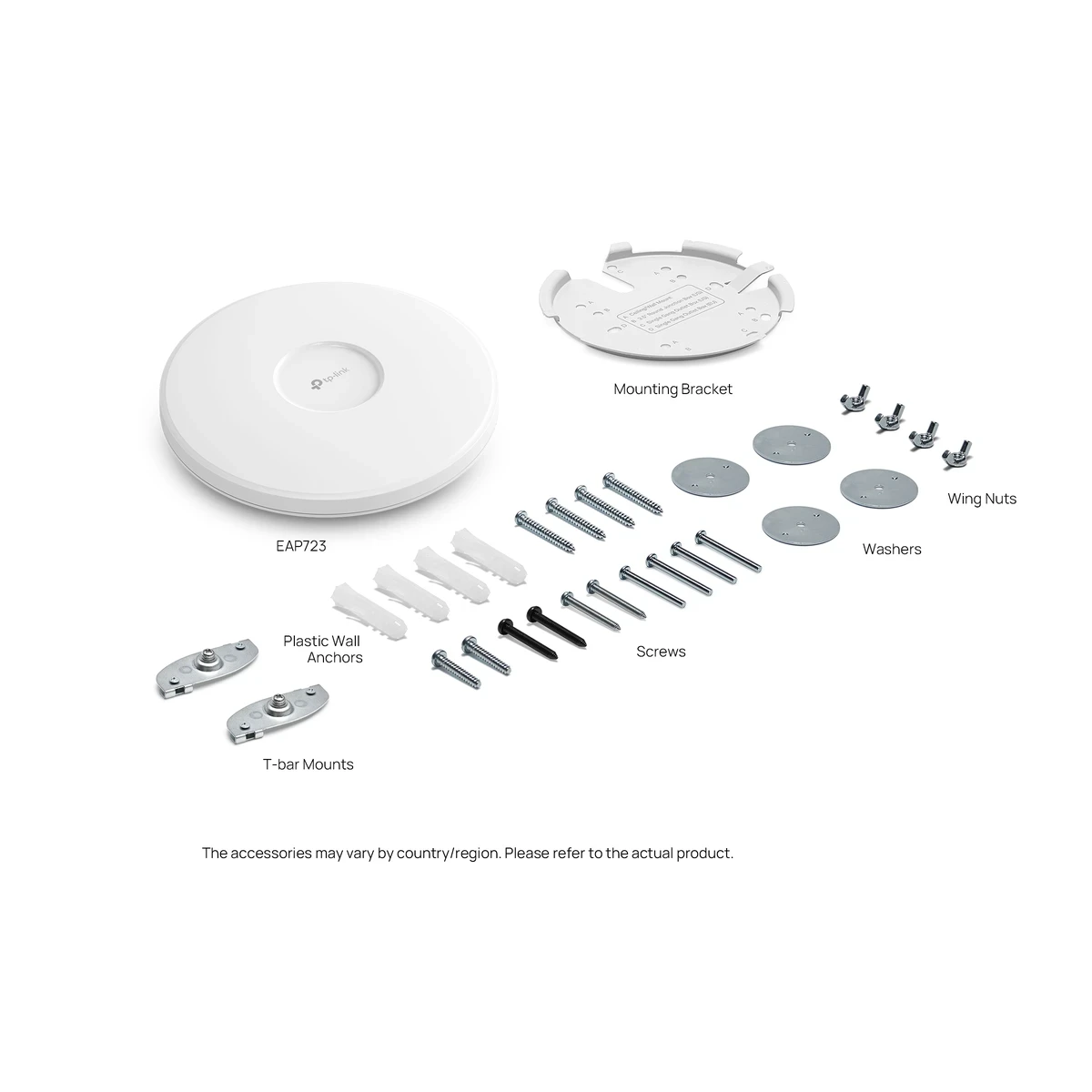

What’s in the Box

• TP-Link EAP723 BE5000 Wi-Fi 7 Ceiling Access Point
• Ceiling / wall mounting kit
• Installation guide

Please note: a DC power adapter is not included. Power the unit with 802.3at PoE+ from a compatible switch, or use a separately purchased 12V/1.5A DC adapter.

FAQs

Q1: Is this the BE5000 or the BE3600 version?
A: The headline figures here are the US BE5000 variant: 4324 Mbps on 5 GHz plus 688 Mbps on 2.4 GHz. The EU EAP723 is BE3600 (2882 Mbps on 5 GHz) — confirm your unit’s variant first.

Q2: Do I need a PoE switch to use the EAP723?
A: A PoE switch is the simplest option, since the DC adapter is not included. The unit accepts 802.3at PoE+ over its 2.5GbE port, or 12V/1.5A DC from a separately purchased adapter.

Q3: Can I manage several EAP723 units together?
A: Yes. That is the point of Omada. Adopt all units into one Omada controller (software, hardware or cloud) and manage SSIDs, security, roaming and updates for the whole site from a single interface.

Q4: How many devices can one EAP723 handle?
A: TP-Link rates it for 250+ clients; real capacity depends on traffic and environment, so dense venues should plan more than one unit per large room.

Q5: Will my older Wi-Fi 5 and Wi-Fi 6 devices work with it?
A: Yes. Wi-Fi 7 access points are backwards compatible, so older laptops, phones and tablets connect normally; only Wi-Fi 7 clients can use the newest Wi-Fi 7 features.

Q6: Does it work without an Omada controller?
A: Standalone setup works for one unit, but central management, mesh and site statistics need an Omada controller.
