Description

Overview

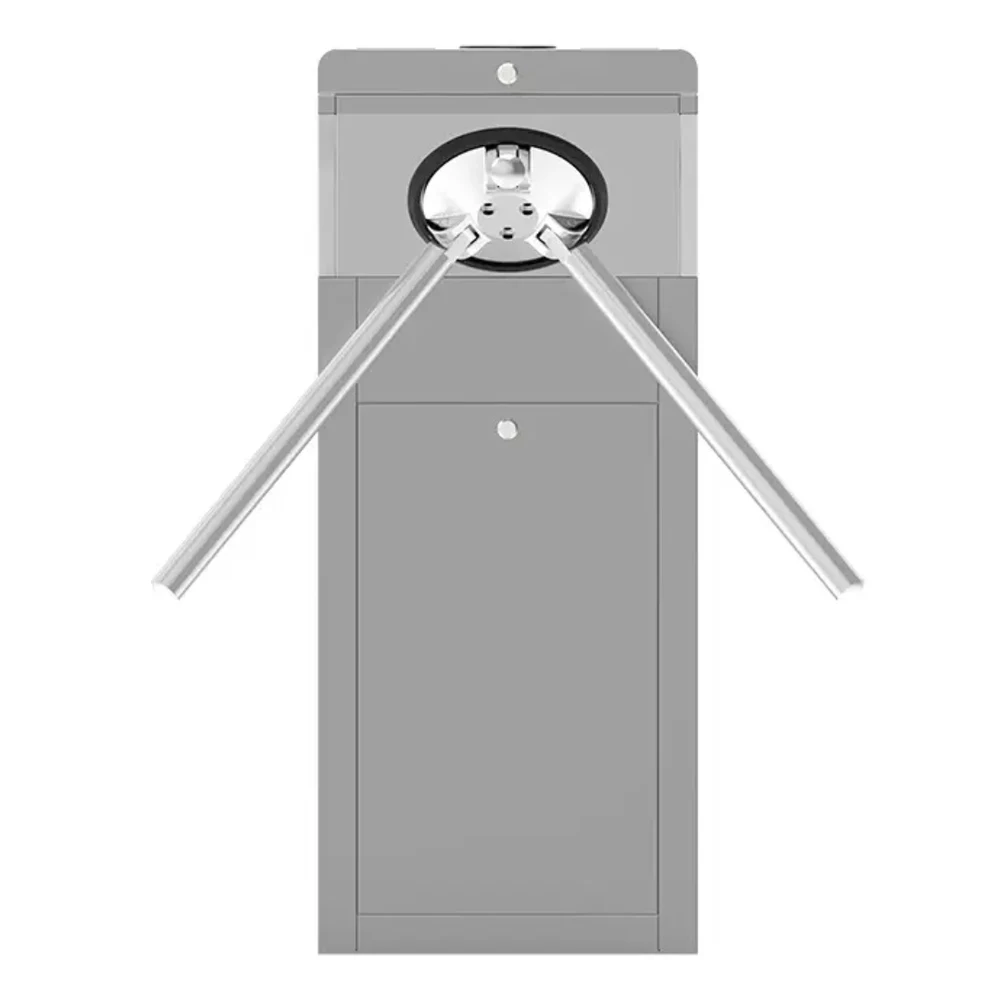

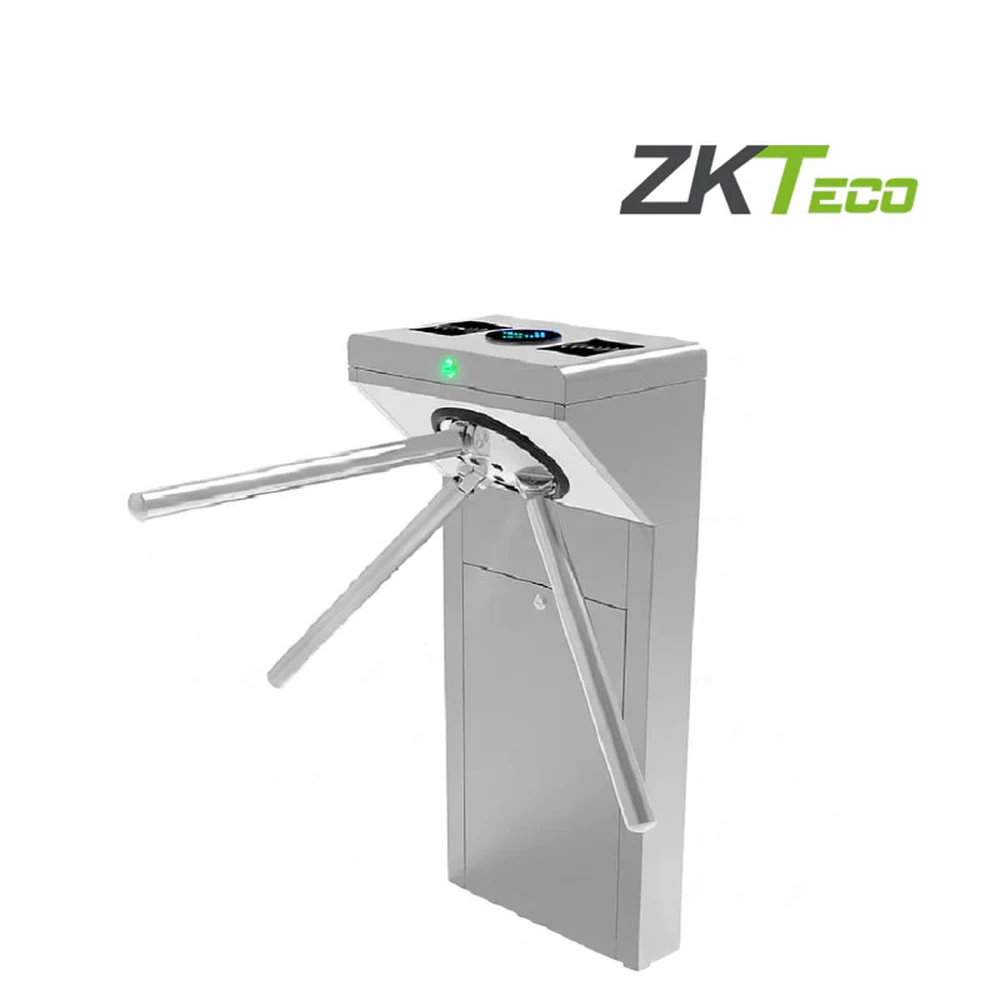

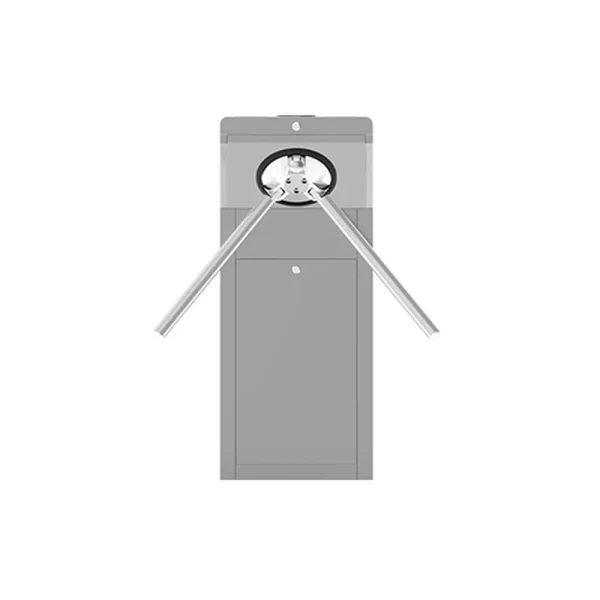

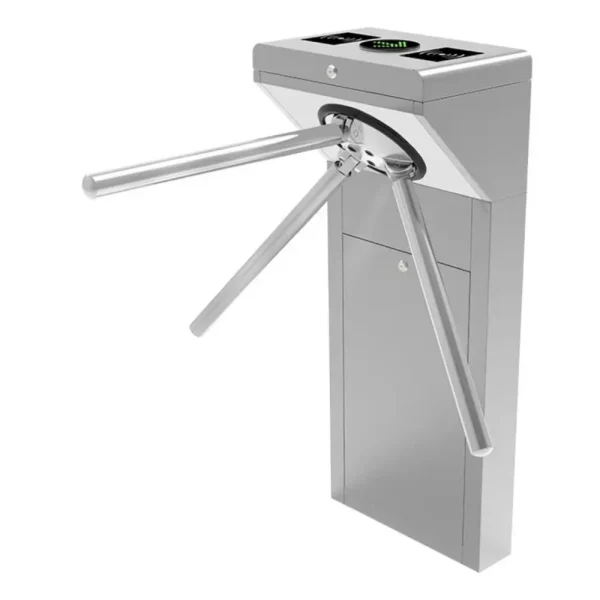

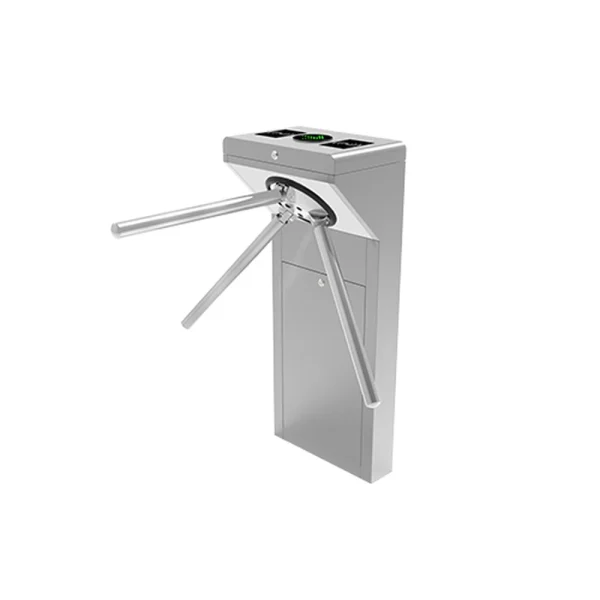

The ZKTeco TS1000 Plus is a single-lane vertical tripod turnstile that brings order, security, and reliable pedestrian flow control to entrances of offices, factories, gyms, schools, and commercial buildings. Built from SUS304 stainless steel with a compact 100 × 420 mm footprint, it allows one authorised person through at a time — up to 25 people per minute with RFID credentials — while its automatic drop-arm mechanism guarantees safe, unobstructed evacuation during power failures or fire alarms.

Designed for real-world access control projects, the TS1000 Plus integrates with ZKTeco’s recommended C3-200 Pro Plus and InBio260 Pro Plus controllers, supports under-mount ProID and KR Series RFID readers as well as fingerprint and QR-code verification options, and communicates over RS485 with a dedicated voltage-free fire-alarm input. Anti-tailgating protection, LED direction indicators, an internal buzzer, and quiet sub-65 dB operation make it equally at home in a corporate lobby or a busy factory gate. With an IPX4-equivalent protection rating, 72-hour salt-spray certified housing, and a 2-million-cycle MCBF rating, the ZKTeco TS1000 Plus is a long-life investment for any facility that takes entry management seriously.

Key Benefits

• Controlled single-lane entry: One person per authorisation — stops tailgating and unauthorised entry at staff gates, lobbies, and gyms.
• Fast throughput: Up to 25 passengers per minute (RFID) and 20 per minute (fingerprint) keep queues moving at shift changes.
• Drop-arm safety: Arms collapse automatically on power loss or fire-alarm signal for instant, unobstructed evacuation.
• Flexible credentials: Works with RFID cards/tags, fingerprint, QR codes, and wired or wireless remote controls — plus third-party systems.
• Built to last: SUS304 stainless steel cabinet (1.2 mm) with 72-hour salt-spray certification; 2 million-cycle MCBF.
• Quiet and efficient: Under 65 dB operation with low power draw — just 10 VA on standby.
• Easy integration: RS485 port, dry-contact inputs, and fire-alarm relay interface connect cleanly to access controllers and building safety systems.

Detailed Features of the ZKTeco TS1000 Plus

A turnstile is only as good as its mechanism, and the TS1000 Plus is engineered around durability. The precision tripod mechanism with a 38 mm stainless steel arm handles up to 40 kg of vertical load at the arm end, while anti-tailgating logic prevents a second person slipping through on one authorisation. Bi-directional configuration lets you set each direction independently — free passage one way, verified entry the other — and a memory mode allows group pass-through during peak periods such as shift changes or event entry.

Safety is built in, not bolted on. The motherboard provides a dedicated voltage-free fire-alarm input: the moment the building’s fire panel triggers, the drop-arm mechanism releases and the lane becomes a clear evacuation path — even during a total power failure. A protective disc shields the internal mechanism from dust, splashing water, and corrosive vapour (tested to an IPX4-equivalent rating), and the stainless housing is certified against 72 hours of salt-spray exposure, so the unit keeps its finish and function in humid or coastal environments.

For system integrators, the TS1000 Plus is a straightforward install: a compact base footprint (100 × 420 mm) saves floor space, the unit ships press-assembled, standard 20 mm conduit accepts power and signal cabling, and the top lid opens with a security key for commissioning and maintenance. Pair it with ZKTeco’s C3-200 Pro Plus or InBio260 Pro Plus controllers and manage everything from ZKBio CVAccess or ZKBio CVSecurity software. Whether securing a factory workforce, a gym membership base, or a corporate office, this turnstile delivers professional-grade access control at a sensible price.

• SUS304 stainless steel construction: 1.2 mm cabinet in silver-gray with 72-hour salt-spray certification for corrosion resistance.
• Single-lane rotating tripod barrier: 550 mm lane width with 500 mm barrier arm (38 mm rod), rated for 40 kg vertical end load.
• Throughput: RFID up to 25 passengers/min; fingerprint up to 20 passengers/min.
• Automatic drop-arm: Arms drop on power failure or emergency/fire signal input for safe evacuation.
• Fire alarm integration: Dedicated voltage-free dry-contact fire signal input on the motherboard.
• RS485 communication: Serial port for controller integration and real-time operational feedback.
• Multiple credential options: Under-mount RFID (ProID / KR Series), fingerprint modules, QR-code readers, wired and wireless remote controls; third-party systems supported.
• Bi-directional operation: Independently configurable pass modes per direction, including one-way free, one-way verified, and memory mode for groups.
• Anti-tailgating: Mechanical and logical protection against unauthorised follow-through.

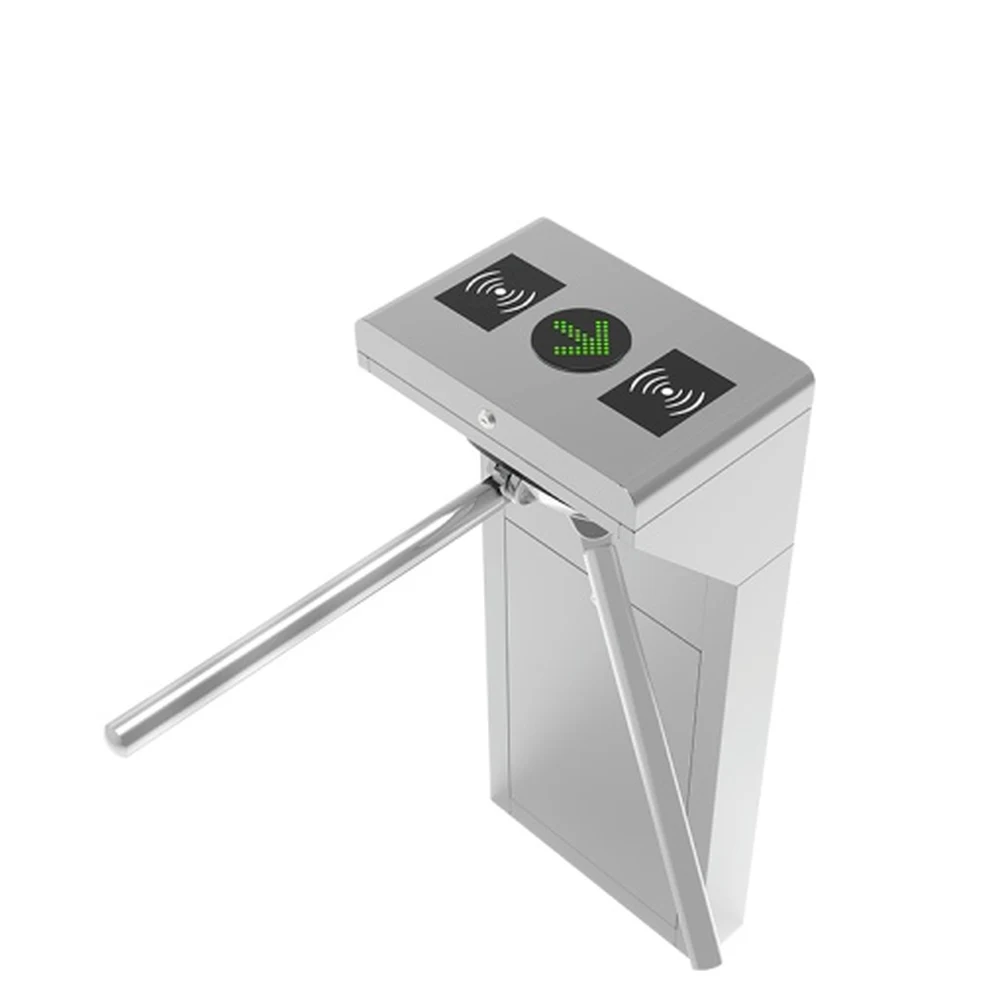

• Visual and audio indicators: Steady green = passage allowed, steady red = lane closed, plus internal buzzer.
• Quiet operation: Noise level below 65 dB — suitable for lobbies and reception areas.
• Low power consumption: 10 VA standby, 40 VA during operation; universal 110/220 V AC (50/60 Hz) plus DC 12 V.
• Reliability rated: 2 million cycles MCBF with mean time to repair under 60 minutes.
• Environmental tolerance: -20 °C to 70 °C operating temperature, 0–85% RH non-condensing; indoor or sheltered outdoor use.
• Security-key maintenance access: Top lid and chassis open with a dedicated key for installers and administrators.

Planning a complete entry system? Browse turnstiles and pedestrian gates, explore access control systems, and see our biometric devices for compatible readers and controllers.

Technical Specifications

Specification	Details
Model	ZKTeco TS1000 Plus Series — Single-Lane Tripod Turnstile
Lane Type	Single lane
Lane Width	550 mm
Barrier Type	Rotating tripod, SUS304 stainless steel, 38 mm rod diameter
Barrier Arm Length	500 mm
Arm Load Rating	Up to 40 kg vertical load at arm end
Chassis Material	SUS304 stainless steel, 1.2 mm thickness
Chassis Colour	Silver-gray
Flow Rate	RFID: 25 passengers/min; Fingerprint: 20 passengers/min
Visual Indicator	Steady green = normal use; Steady red = lane closed
Audio Indicator	Internal buzzer
Emergency Mode	Automatic drop-arm on power failure or fire signal
Fire Signal Input	Voltage-free dry contact (relay) × 1
Communication	RS485 port × 1; dry-contact control inputs
Recommended Controllers	ZKTeco C3-200 Pro Plus, InBio260 Pro Plus
Credential Options	Under-mount RFID (ProID / KR Series), fingerprint, QR reader, wired/wireless remote
Supported Software	ZKBio CVAccess / ZKBio CVSecurity (with equipped controller)
Safety Features	Anti-tailgating, drop-arm, protective disc
Power Supply	110/220 V AC @ 50–60 Hz, DC 12 V
Power Rating	10 VA (standby); 40 VA (operation)
Noise Level	Less than 65 dB
MCBF / MTTR	2,000,000 cycles / less than 60 minutes
Dimensions (L × W × H)	780 × 750 × 1000 mm
Footprint	100 × 420 mm
Net / Gross Weight	20 kg / 25 kg
Operating Temperature	-20 °C to 70 °C
Operating Humidity	0%–85% RH (non-condensing)
Ingress Protection	IPX4 (equivalent, self-lab tested)
Application Environment	Indoor / outdoor (if sheltered)
Site Preparation	Flat, level finished floor; 100 mm wall and inter-device clearance
Delivery	Press-assembled unit

Ideal Users

• Factories and industrial plants: Manage shift-time workforce flow with RFID cards and reliable drop-arm safety.
• Corporate offices: Secure lobbies and restricted floors with a professional, quiet turnstile.
• Gyms and fitness centres: Membership-based entry with card or QR verification and anti-tailgating.
• Schools and universities: Controlled campus and library access with durable stainless construction.
• Commercial buildings and malls: Visitor and staff lane management integrated with building access systems.
• System integrators: A well-documented, widely compatible tripod turnstile for access-control tenders and projects.

What’s in the Box

• ZKTeco TS1000 Plus tripod turnstile (press-assembled cabinet unit)
• Tripod barrier arm kit
• Security key for lid/chassis access
• Floor mounting hardware (expansion bolts)
• Power cable
• User manual and installation guide

Note: Access controller, RFID/fingerprint readers, and credentials are selected per project and quoted separately — contact us for a complete system package.

FAQs

Q1: How many people can pass through per minute?
A: Up to 25 passengers per minute with RFID credentials, and up to 20 per minute with fingerprint verification — plenty for shift changes, gym peak hours, and office rush periods.

Q2: What happens during a power cut or fire emergency?
A: The automatic drop-arm mechanism releases the barrier arms, creating a completely clear passage for evacuation. The fire-alarm input also triggers the drop-arm when connected to the building’s fire panel.

Q3: Can it work with our existing access control system?
A: Yes. The TS1000 Plus accepts dry-contact control signals and RS485 communication, and it works with third-party controllers and readers. ZKTeco’s C3-200 Pro Plus and InBio260 Pro Plus controllers are officially recommended.

Q4: Is it suitable for outdoor installation?
A: It is rated for indoor use and sheltered outdoor locations (IPX4-equivalent protection, -20 °C to 70 °C). For fully exposed outdoor sites, install it under a canopy or shelter.

Q5: What floor preparation is needed?
A: A flat, level, solid floor is required, with the unit bolted down using expansion anchors. Leave 100 mm clearance from walls (for lid opening) and 100 mm between units in multi-lane installations.

Q6: Does it prevent tailgating?
A: Yes. Anti-tailgating is a built-in safety feature: the mechanism allows only one authorised passage per credential, blocking anyone trying to follow through unchallenged.
