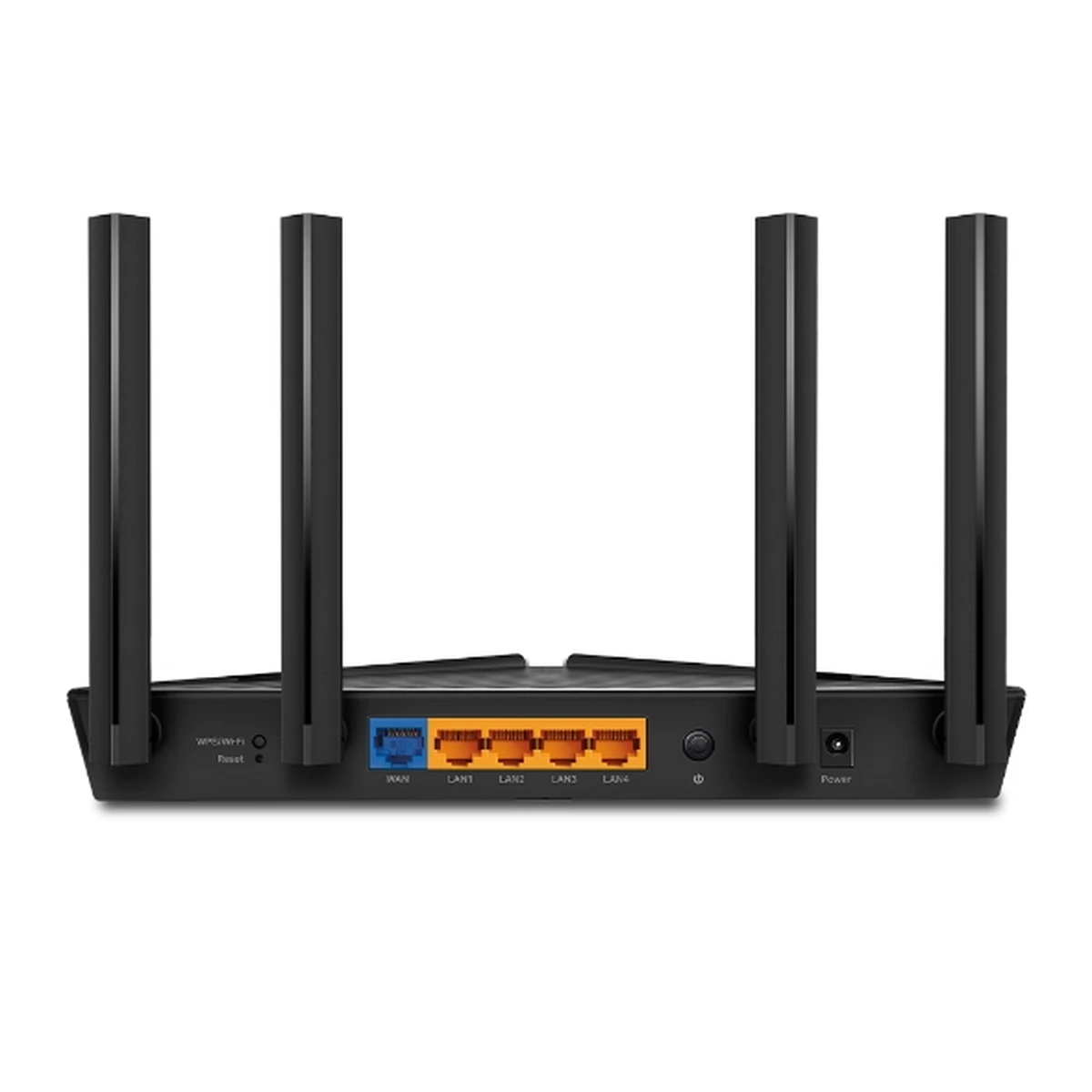

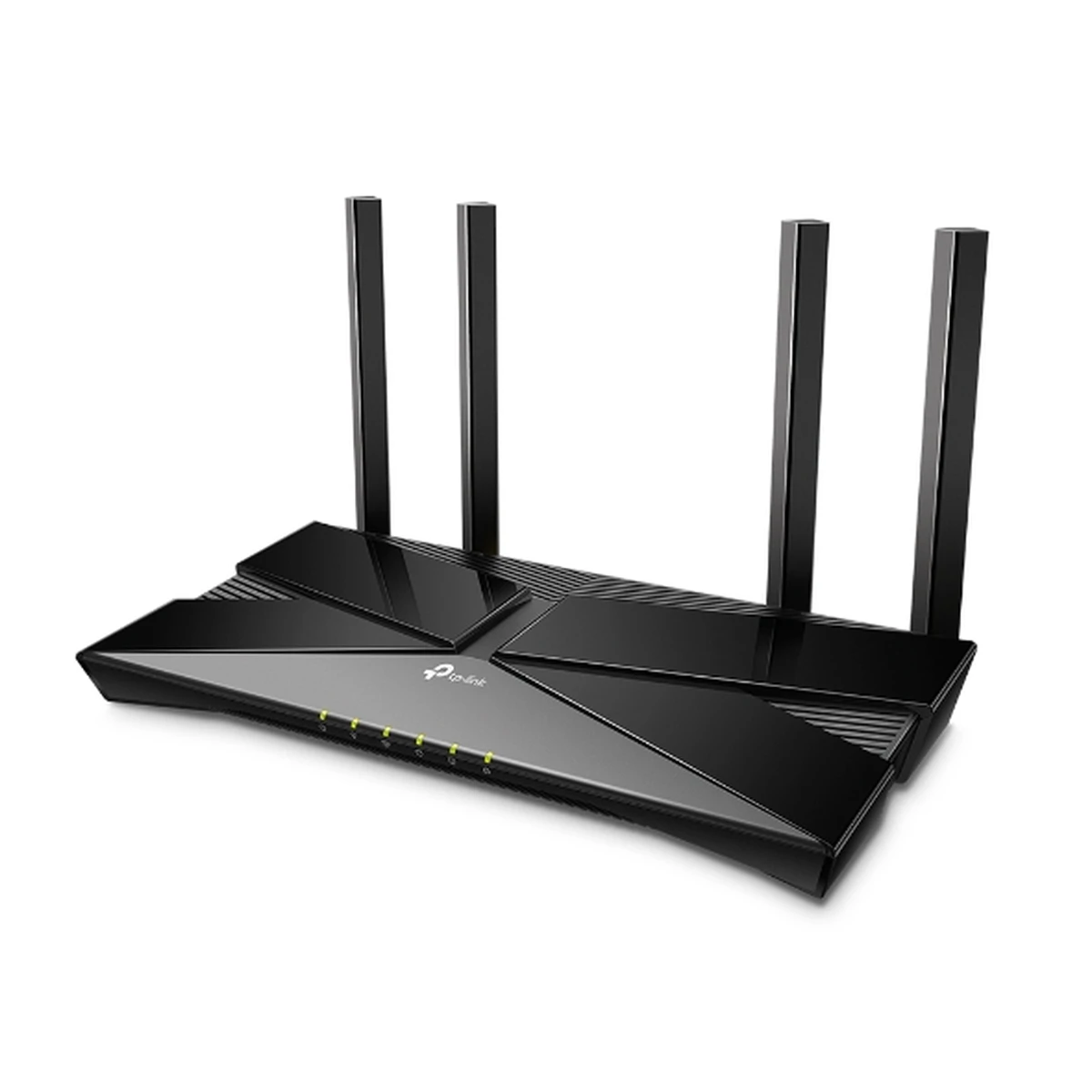

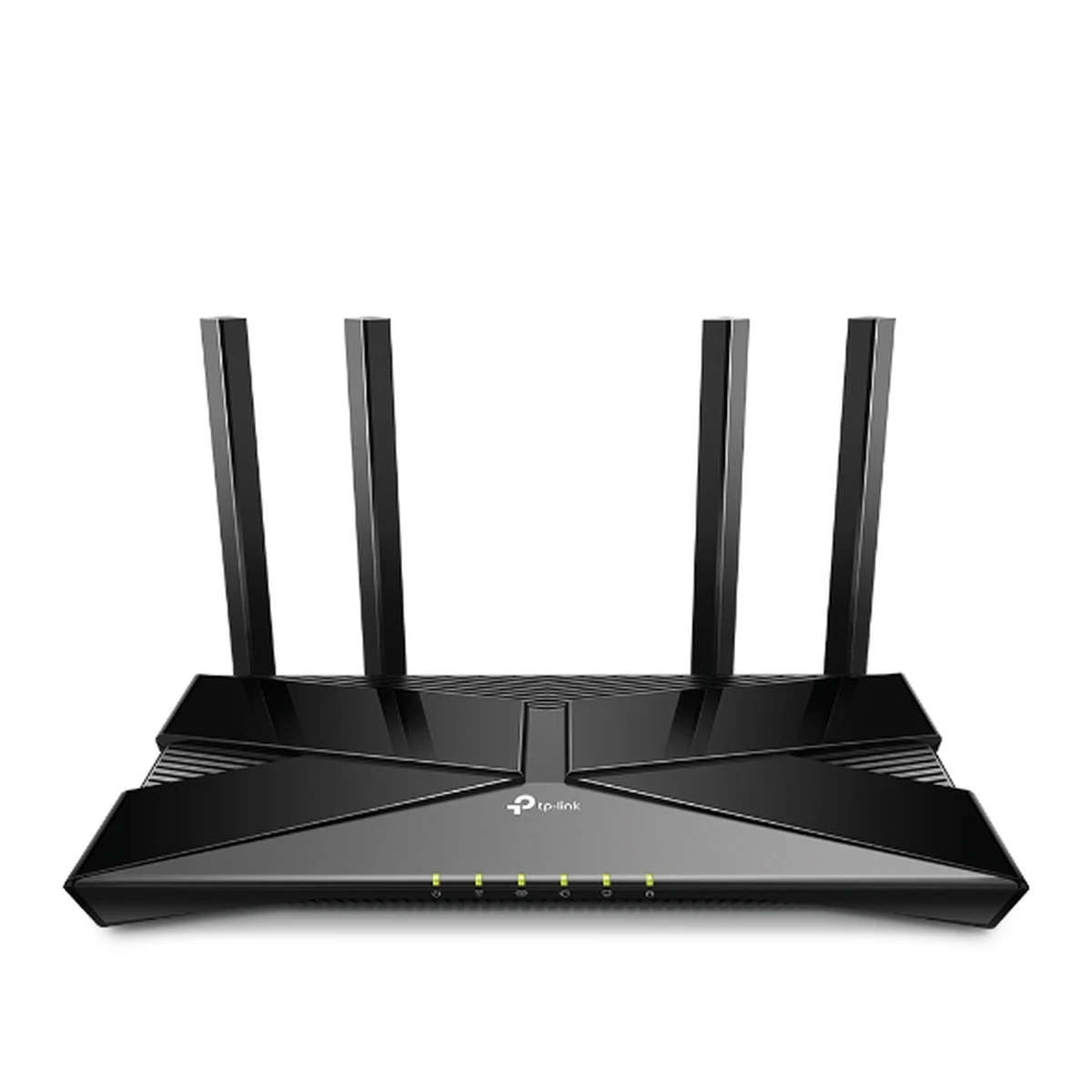

TP-Link Archer AX53 AX3000 Wi-Fi 6 Router

₨26999.00

  • AX3000 Wi-Fi 6 — 2402 Mbps on 5 GHz (HE160)
  • 4 antennas + beamforming + high-power FEM
  • HomeShield security & parental controls
  • 1 Gigabit WAN + 4 Gigabit LAN, OneMesh/EasyMesh

Description

Overview

The TP-Link Archer AX53 AX3000 Wi-Fi 6 Router is the balanced upgrade for larger homes on fast fibre connections: AX3000 wireless, four high-performance antennas with high-power amplifiers, full Gigabit ports, HomeShield security and mesh expansion, without stepping up to flagship prices. It delivers 2402 Mbps on the 5 GHz band using 160 MHz channels, plus 574 Mbps on the 2.4 GHz band — roughly double the 5 GHz speed of an AX1800 router — so 4K streaming, large downloads and multi-device households all have real headroom.

That headroom is what separates the AX53 from entry-level Wi-Fi 6. The 160 MHz channel width on 5 GHz needs a compatible client to reach the top rate, but even without it, the combination of OFDMA, four streams and high-power front-end modules gives wider, steadier coverage across a 2–3 bedroom house. HomeShield adds network-level security and parental controls on top of WPA3, and OneMesh plus EasyMesh support means the router can later become the centre of a whole-home mesh system instead of being replaced when coverage needs grow.

TP-Link Archer AX53 AX3000 Wi-Fi 6 Router

Key Benefits

  • AX3000 speed: 2402 Mbps on 5 GHz (HE160) plus 574 Mbps on 2.4 GHz.
  • Wider, stronger coverage: Four antennas, beamforming and high-power FEM for 2–3 bedroom houses.
  • More devices, less lag: OFDMA, 4 streams and airtime fairness for many clients at once.
  • HomeShield security: IoT protection, malicious site blocker, intrusion prevention and DDoS protection.
  • Mesh-ready: OneMesh and EasyMesh for whole-home coverage with one network name.
  • Full Gigabit wired: 1 Gigabit WAN plus 4 Gigabit LAN ports.
  • Lower battery drain: Target Wake Time lets supported devices sleep longer between check-ins.

Detailed Features of the TP-Link Archer AX53 AX3000 Wi-Fi 6 Router

The AX53’s speed advantage comes from its 5 GHz design. With 160 MHz channels (HE160), the 5 GHz radio reaches 2402 Mbps — a genuine step above the 1201 Mbps of AX1800 routers — provided the client device also supports 160 MHz. Even clients that do not benefit from four streams, OFDMA and high-power amplifiers, and DFS opens extra 5 GHz channels to route around a crowded block.

Coverage is handled by four fixed high-performance antennas forming a signal-boosting array, with beamforming concentrating signal towards each client and a high-power front-end module lifting transmission power. TP-Link rates the AX53 for 2–3 bedroom houses, and its stronger amplifiers hold up better at the edges of that range. Airtime fairness stops slow legacy devices from monopolising the channel, and QoS by device lets you prioritise the work laptop, the gaming console or the main TV over background traffic.

Security is a full layer, not just a password. HomeShield provides real-time IoT protection for smart home gadgets, a malicious site blocker, an intrusion prevention system, DDoS attack prevention and a home network scanner that flags vulnerable devices. HomeShield parental controls add custom profiles, a professional content filter library, family time, bedtimes and off-time schedules, time rewards and weekly and monthly reports. Underneath that, WPA3 encryption, a SPI firewall, access control and IP/MAC binding protect the network itself. Management is through the Tether app or web interface, with Alexa voice control supported, and the router runs in Router or Access Point mode.

  • AX3000 dual-band Wi-Fi 6: 2402 Mbps on 5 GHz (HE160) plus 574 Mbps on 2.4 GHz.
  • 4 antennas + beamforming + high-power FEM: Signal-boosting array with focused beams.
  • Dual-core CPU: Handles routing, HomeShield inspection and multi-device traffic without stalling.
  • HomeShield security: IoT protection, malicious site blocker, intrusion prevention, DDoS prevention and network scanner.
  • HomeShield parental controls: Profiles, content filtering, schedules and usage reports.
  • OneMesh + EasyMesh: Expand into whole-home mesh with compatible TP-Link devices and smart roaming.
  • Gigabit ports: 1 x Gigabit WAN and 4 x Gigabit LAN; no USB port is published for this model.

Comparing within the range? The Archer AX23 AX1800 costs less for smaller homes, the Archer AX73 AX5400 goes further for very large homes, and our full TP-Link router range covers everything between.

Technical Specifications

Specification Details
Model TP-Link Archer AX53
Wi-Fi Standard Wi-Fi 6 (IEEE 802.11ax/ac/n/a on 5 GHz, 802.11ax/n/b/g on 2.4 GHz)
Wireless Speed AX3000: 2402 Mbps on 5 GHz (HE160) + 574 Mbps on 2.4 GHz
Antennas 4 x fixed high-performance external antennas
Wireless Features OFDMA, MU-MIMO, beamforming, high-power FEM, airtime fairness, DFS, 4 streams, Target Wake Time
Processor Dual-core CPU
WAN Port 1 x Gigabit WAN port
LAN Ports 4 x Gigabit LAN ports
USB Port None published for this model
Working Modes Router mode, Access Point mode
Mesh Support OneMesh supported, EasyMesh-compatible
Security WPA, WPA2, WPA3, WPA/WPA2-Enterprise, SPI firewall, access control, IP and MAC binding
HomeShield Security Real-time IoT protection, malicious site blocker, intrusion prevention system, DDoS attack prevention, home network scanner
HomeShield Parental Controls Custom profiles, content filter library, family time, bedtime, off time, time rewards, usage reports, pause the internet
Guest Network 1 x 5 GHz guest network, 1 x 2.4 GHz guest network
VPN Server OpenVPN, PPTP
WAN Types Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Management TP-Link Tether app, web interface, OTA firmware upgrade, Alexa voice control
Power Supply 12V / 2A
Buttons Wi-Fi/WPS button, power on/off button, reset button
Dimensions 260.2 x 135 x 41.6 mm

Ideal Users

  • Larger family homes: 2–3 bedroom houses with many phones, laptops, TVs and smart devices online at once.
  • Fast fibre subscribers: Homes whose fibre plan deserves more than entry-level wireless to actually feel fast.
  • 4K streamers and gamers: Lower latency and higher 5 GHz throughput for streaming boxes, consoles and PCs.
  • Parents: HomeShield parental controls with profiles, schedules and reports for children’s devices.
  • Smart-home owners: IoT protection and network scanning for cameras, speakers and connected appliances.
  • Buyers planning mesh: A strong single router today that becomes a mesh centre later, not a throwaway purchase.

What’s in the Box

  • TP-Link Archer AX53 Wireless Router
  • Power adapter
  • RJ45 Ethernet cable
  • Quick installation guide

FAQs

Q1: How is the AX53 different from the AX23?
A: The AX53 is AX3000 versus the AX23’s AX1800 — double the 5 GHz rate (2402 vs 1201 Mbps) — plus high-power amplifiers and HomeShield security. For a larger home or a faster fibre plan, the AX53 has noticeably more headroom.

Q2: Does the AX53 have a USB port?
A: No. TP-Link publishes no USB port for the AX53, so it cannot share a USB drive or printer over the network. If USB sharing matters, look at a model in the same speed class that does publish a USB 3.0 port.

Q3: Do I need a Wi-Fi 6 device to benefit?
A: No, older devices connect normally, but Wi-Fi 6 clients get the full benefit of OFDMA, Target Wake Time and 160 MHz channels. The top 2402 Mbps rate also needs a client that supports 160 MHz bandwidth.

Q4: Is HomeShield free?
A: HomeShield includes a free Basic Plan; fees apply for the Pro Plan. Check TP-Link’s HomeShield pages for current plan details before relying on a Pro-only feature.

Q5: Can I extend it into a mesh system?
A: Yes. It supports OneMesh and is EasyMesh-compatible, so adding a compatible extender or router creates a single-name mesh network with smart roaming.

Q6: Will it work as an access point?
A: Yes. It has Router and Access Point modes, so it can serve as the main router or as an access point behind another router.
