Description

Overview

The TP-Link Archer AX73 AX5400 Wi-Fi 6 Router is a flagship-class dual-band router for big Pakistani homes that never slow down. It delivers combined wireless speeds of up to 5400 Mbps — 4804 Mbps on the 5 GHz band with a wide 160 MHz channel, plus 574 Mbps on the 2.4 GHz band — enough for multiple 8K streams, serious online gaming and large downloads running at the same time. A powerful 1.5 GHz triple-core CPU keeps everything responsive, while the top Wi-Fi 6 structure of 4T4R with six streams moves more data to more devices at once, so a house full of phones, laptops, consoles, smart TVs and smart-home gadgets stays fast even at peak hours.

Six fixed high-performance antennas, Beamforming and high-power FEM spread a strong signal across larger floor plans, and TP-Link positions the AX73 for three-bedroom homes and 200+ connected devices. A outgrown a basic router, the AX73 removes Wi-Fi as the bottleneck.

Key Benefits

• AX5400 warp speed: 4804 Mbps on 5 GHz (HE160) plus 574 Mbps on 2.4 GHz — built for 8K streaming, fast downloads and gaming simultaneously.
• 6-stream, 4T4R Wi-Fi 6: Four transmit and four receive chains with six streams quadruple average throughput capacity versus older routers.
• Coverage for large homes: Six high-performance antennas, Beamforming and high-power FEM adapt coverage to fit your home and reach every room.
• 200+ devices: A 1.5 GHz triple-core CPU plus OFDMA and MU-MIMO handle dozens of devices streaming and gaming at the same time.
• USB 3.0 sharing: Share media, run an FTP or Samba server, or build a private cloud from an attached USB drive.

Detailed Features of the TP-Link Archer AX73 AX5400 Wi-Fi 6 Router

What separates the AX73 from mid-range Wi-Fi 6 routers is the completeness of its Wi-Fi 6 implementation. The 5 GHz band uses the full structure — 4T4R, HE160 and 1024-QAM — to reach 4804 Mbps, while OFDMA lets many clients share one transmission and MU-MIMO talks to several devices at once. The result is higher average throughput when the network is busy, exactly when streaming, gaming, video calls and downloads compete.

Coverage and cooling are engineered to match. The six antennas and Beamforming concentrate signal strength towards your devices, and high-power FEM lifts transmission power through walls and distance. Four Gigabit LAN ports cover PCs, consoles and TVs, and link aggregation pairs two of them for a doubled wired link. Setup is guided through the Tether app, which also manages parental controls, QoS, guest networks and firmware updates.

• AX5400 dual-band Wi-Fi 6: 4804 Mbps (5 GHz, HE160) + 574 Mbps (2.4 GHz) with 4T4R, 6 streams, OFDMA and MU-MIMO.
• 1.5 GHz triple-core CPU: A powerful processor that keeps routing, security and multi-device traffic smooth under heavy load.
• 6 fixed high-performance antennas: A signal-boosting array plus Beamforming and high-power FEM for broad, stable coverage.
• 200+ device capacity: Designed for smart homes with a very large number of connected clients.
• Static link aggregation (LAG): Bond two LAN ports into one faster wired link, useful for a NAS or server moving a lot of data.
• USB 3.0 port: Media sharing, Samba and FTP servers, Apple Time Machine and private cloud storage.
• TP-Link HomeShield: Real-time IoT protection, malicious site blocker, intrusion prevention, DDoS prevention and network scanner.

See how it compares with the rest of the range: the Archer AX55 gives you AX3000 Wi-Fi 6 with USB sharing at a lower price, the Archer AX53 is the balanced AX3000 choice for medium homes, and the Archer C80 covers fibre homes that want AC1900 Wi-Fi 5 value instead.

Technical Specifications

Specification	Details
Model	TP-Link Archer AX73
Wi-Fi Standard	Wi-Fi 6 (IEEE 802.11ax), dual-band, 6-stream
Wi-Fi Speeds	AX5400: 4804 Mbps on 5 GHz (802.11ax, HE160) + 574 Mbps on 2.4 GHz (802.11ax)
Antennas	6 × fixed high-performance antennas
Signal Technology	4T4R, Beamforming, high-power FEM, OFDMA, 4×4 MU-MIMO, DFS, Airtime Fairness
Processor	1.5 GHz triple-core CPU
Device Capacity	200+ devices

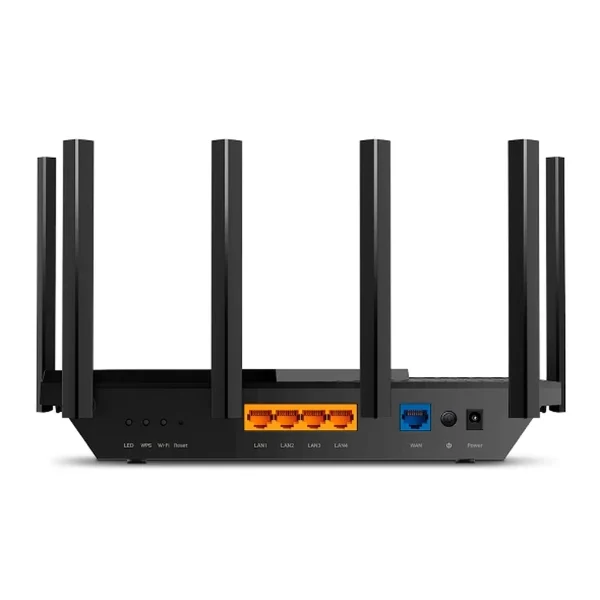

Ethernet Ports	1 × Gigabit WAN port, 4 × Gigabit LAN ports, static link aggregation (LAG) available with 2 × LAN ports

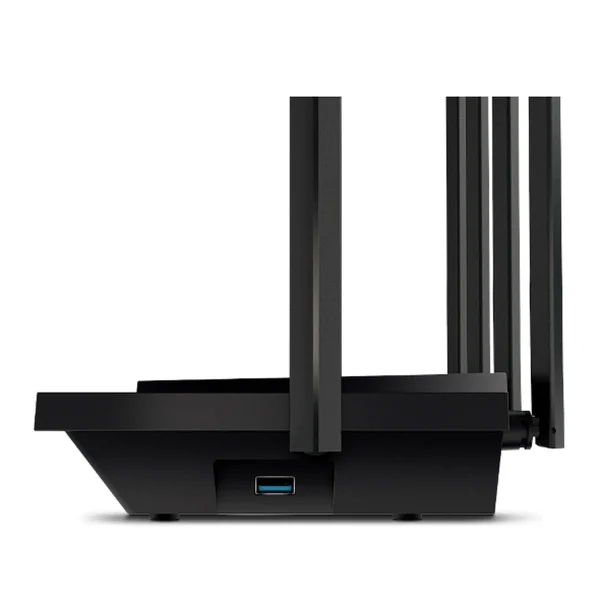

USB Port	1 × USB 3.0 port (NTFS, exFAT, HFS+, FAT32; Samba, FTP, media server, Time Machine)
Security	WPA, WPA2, WPA3, WPA/WPA2-Enterprise; SPI firewall; HomeShield security
Mesh Support	TP-Link OneMesh supported
Working Modes	Router Mode, Access Point Mode
Management	TP-Link Tether app, web interface, auto firmware upgrade
Power	12 V ⎓ 2.5 A power adapter
Dimensions (W × D × H)	272.5 × 147.2 × 49.2 mm
Operating Temperature	0 °C to 40 °C

Ideal Users

• Large homes and joint families: Three-bedroom houses and multi-generational households where dozens of devices are online all day.
• Serious gamers and 8K streamers: Low-latency, high-throughput wireless for competitive gaming and multiple ultra-high-definition streams.
• Smart-home owners: 200+ device capacity comfortably covers cameras, speakers, lights, sensors and appliances alongside phones and PCs.
• Home offices and creators: Large uploads, cloud backups and video calls stay fast, with link aggregation available for a NAS or workstation.
• Parents: HomeShield parental controls with custom profiles, bedtimes and online-time reports keep children’s internet use in check.

What’s in the Box

• TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router
• Power adapter
• RJ45 Ethernet cable
• Quick installation guide

FAQs

Q1: How is the AX73 different from the AX55 or AX53?

A: The AX73 is a higher class: AX5400 instead of AX3000, six antennas instead of four, a 1.5 GHz triple-core CPU and link aggregation. It suits larger homes and heavier device loads; the AX55 and AX53 are better value for medium homes.

Q2: Can the AX73 really handle 200+ devices?

A: Yes — TP-Link rates the AX73 for 200+ devices, thanks to its triple-core CPU, OFDMA and MU-MIMO. The comfortable number depends on what those devices do, but a typical smart home is well within its capacity.

Q3: What is link aggregation and do I need it?

A: Static link aggregation bonds two LAN ports into one faster wired link, useful for a NAS or server moving a lot of data. Most homes will never need it, but it is there if your setup grows.

Q4: Does the AX73 support mesh Wi-Fi?

A: Yes, through TP-Link OneMesh. Pair it with a compatible OneMesh range extender and you get one network name with seamless roaming, without buying into a whole new mesh system.

Q5: What can I use the USB 3.0 port for?

A: Attach a USB drive to share files and media across your network, run Samba or FTP servers, back up a Mac with Time Machine, or create a private cloud you can reach remotely.

Q6: Will it work with my fibre connection and older devices?

A: Yes. Connect its Gigabit WAN port to your fibre ONT or modem, and Wi-Fi 6 remains fully compatible with older Wi-Fi 5 and Wi-Fi 4 devices — they simply connect at their own maximum speeds.
